LDLN015PU10R

LDLN015PU10R Overview

Product belongs to the LDLN015 series. This product is categorized as LDO Regulators Type: Ultra Low Noise - High PSRR Linear Voltage Regulator IC Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000744 oz SMD/SMT Mounting-Style DFN-6 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 6-DFN (2x2) Tolerance of 1 % 2.1 V ~ 5.5 V voltage input Number-of-Outputs: 1 Output Output voltage: 1V Positive Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1 V 70 uA is 92 nA. Maximum Input Voltage: 5.5 V Output current: 150 mA The product's 2.1 V is 5.1 V. Load regulation is 0.001 % / mA. The voltage regulation accuracy of this product is 2 %. The 86 mV. The maximum 180 mV is 360 mV. This product's 0.005 % / V is 0.01 %/V. This product has an - of 2.7 V to 5.5 V.

LDLN015PU10R Image

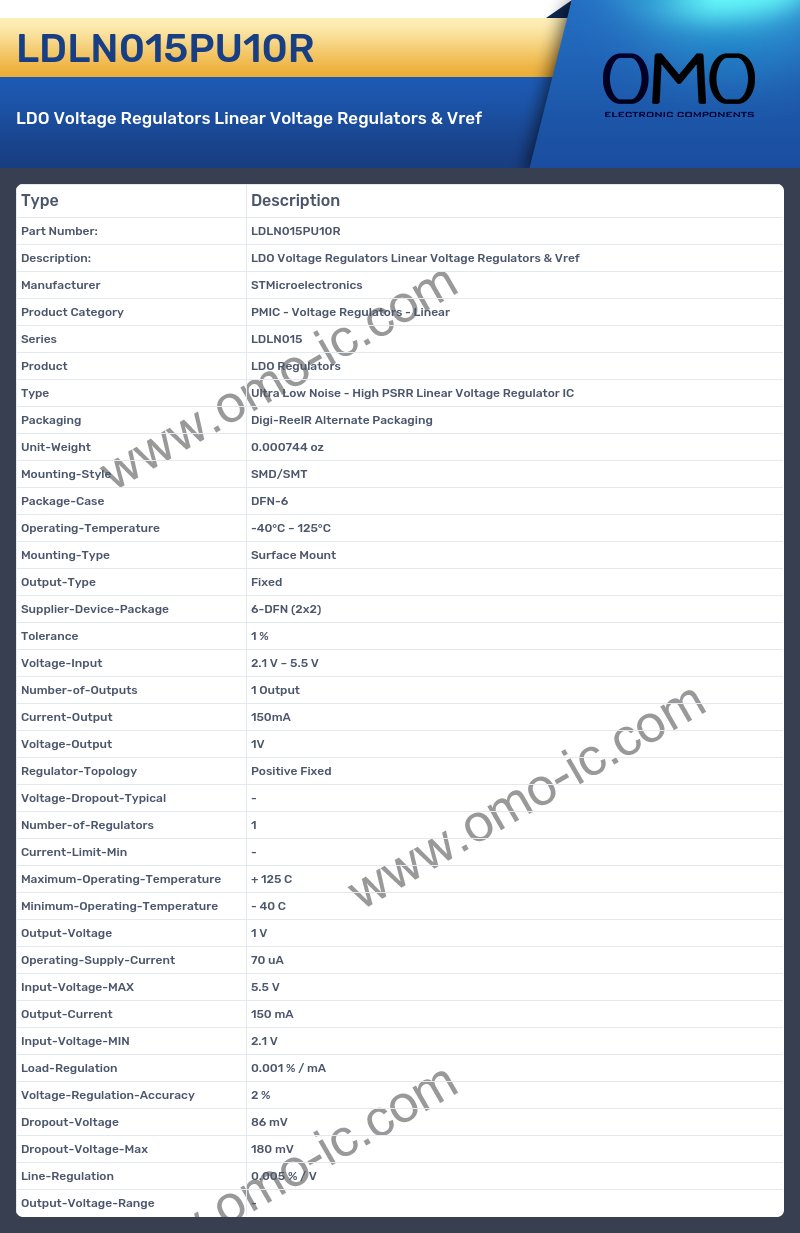

LDLN015PU10R Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Voltage Regulators - Linear
• Series LDLN015
• Product LDO Regulators
• Type Ultra Low Noise - High PSRR Linear Voltage Regulator IC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000744 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-6
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 6-DFN (2x2)
• Tolerance 1 %
• Voltage-Input 2.1 V ~ 5.5 V
• Number-of-Outputs 1 Output
• Current-Output 150mA
• Voltage-Output 1V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical -
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1 V
• Operating-Supply-Current 70 uA
• Input-Voltage-MAX 5.5 V
• Output-Current 150 mA
• Input-Voltage-MIN 2.1 V
• Load-Regulation 0.001 % / mA
• Voltage-Regulation-Accuracy 2 %
• Dropout-Voltage 86 mV
• Dropout-Voltage-Max 180 mV
• Line-Regulation 0.005 % / V
• Output-Voltage-Range -
