LED5000PHR

LED5000PHR Overview

Product belongs to the LED5000 series. This product is categorized as Current Regulators Type: DC DC Regulator Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications HPSO-8 This product's 850kHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Versatile Lighting, Signage applications for maximum usability Supplier device package: 8-HSOP Number-of-Outputs: 1 Current-Output-Channel is 3A This product has Yes. Topology: Step-Down (Buck), Step-Up (Boost) feedback The maximum voltage supply is 48V. High or Low Side sensing method Accuracy is rated at +/- 3 % . The minimum 5.5V required for voltage supply. Output voltage: - Dimming control is done through PWM communication. 1.7 mA is 92 nA. Output current: 23 uA Maximum supply voltage of 48 V Minimum supply voltage is 5.5 V This product operates within an 5.5 V to 48 V.

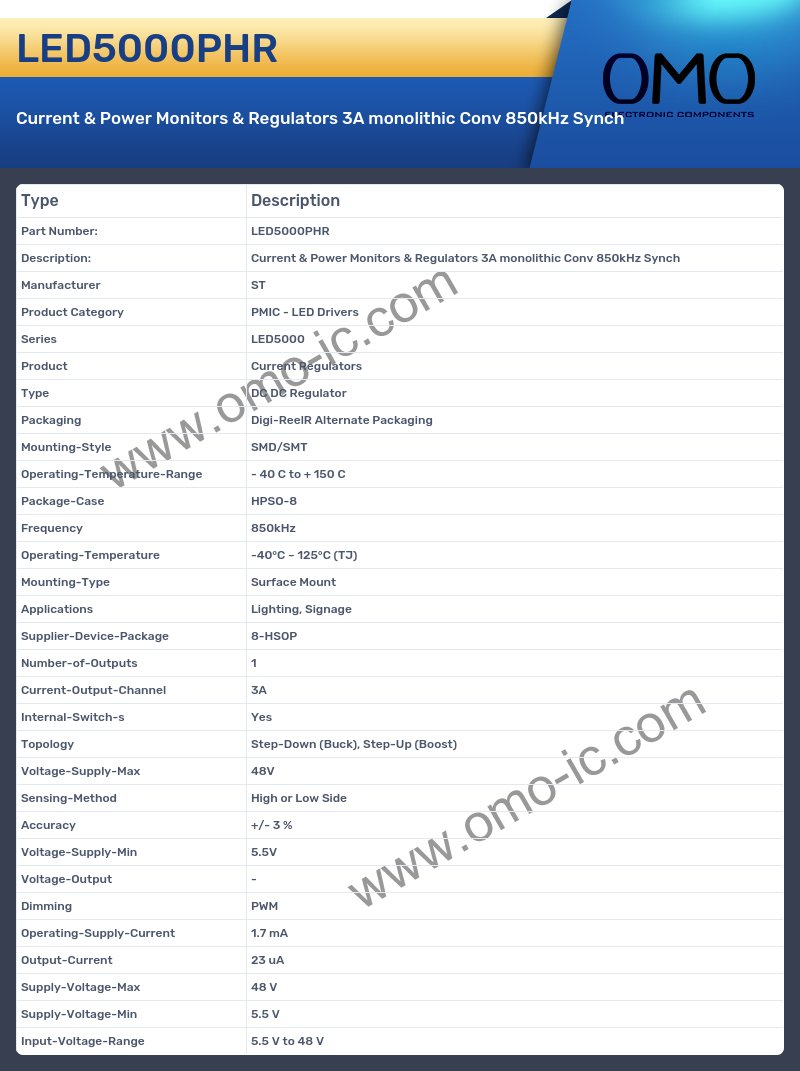

LED5000PHR Image

LED5000PHR Specifications

• Manufacturer ST
• Product Category PMIC - LED Drivers
• Series LED5000
• Product Current Regulators
• Type DC DC Regulator
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case HPSO-8
• Frequency 850kHz
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Applications Lighting, Signage
• Supplier-Device-Package 8-HSOP
• Number-of-Outputs 1
• Current-Output-Channel 3A
• Internal-Switch-s Yes
• Topology Step-Down (Buck), Step-Up (Boost)
• Voltage-Supply-Max 48V
• Sensing-Method High or Low Side
• Accuracy +/- 3 %
• Voltage-Supply-Min 5.5V
• Voltage-Output -
• Dimming PWM
• Operating-Supply-Current 1.7 mA
• Output-Current 23 uA
• Supply-Voltage-Max 48 V
• Supply-Voltage-Min 5.5 V
• Input-Voltage-Range 5.5 V to 48 V
