LM3302D

LM3302D Overview

Product belongs to the LM3302 series. This product is categorized as Analog Comparators Type: General Purpose Tube Alternate Packaging is the packaging method for this product Weight of 0.004564 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Collector, TTL Number of channels: 4 Channel Supplier device package: 14-SOIC Voltage supply range: 2 V ~ 28 V, ±1 V ~ 14 V 4 element 800μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 300 ns response time Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 200 uA is 92 nA. Maximum supply voltage of 28 V Minimum supply voltage is 2 V General Purpose comparator type Input bias current of 500 nA The 20 mV. The 10 nA. 6 mA

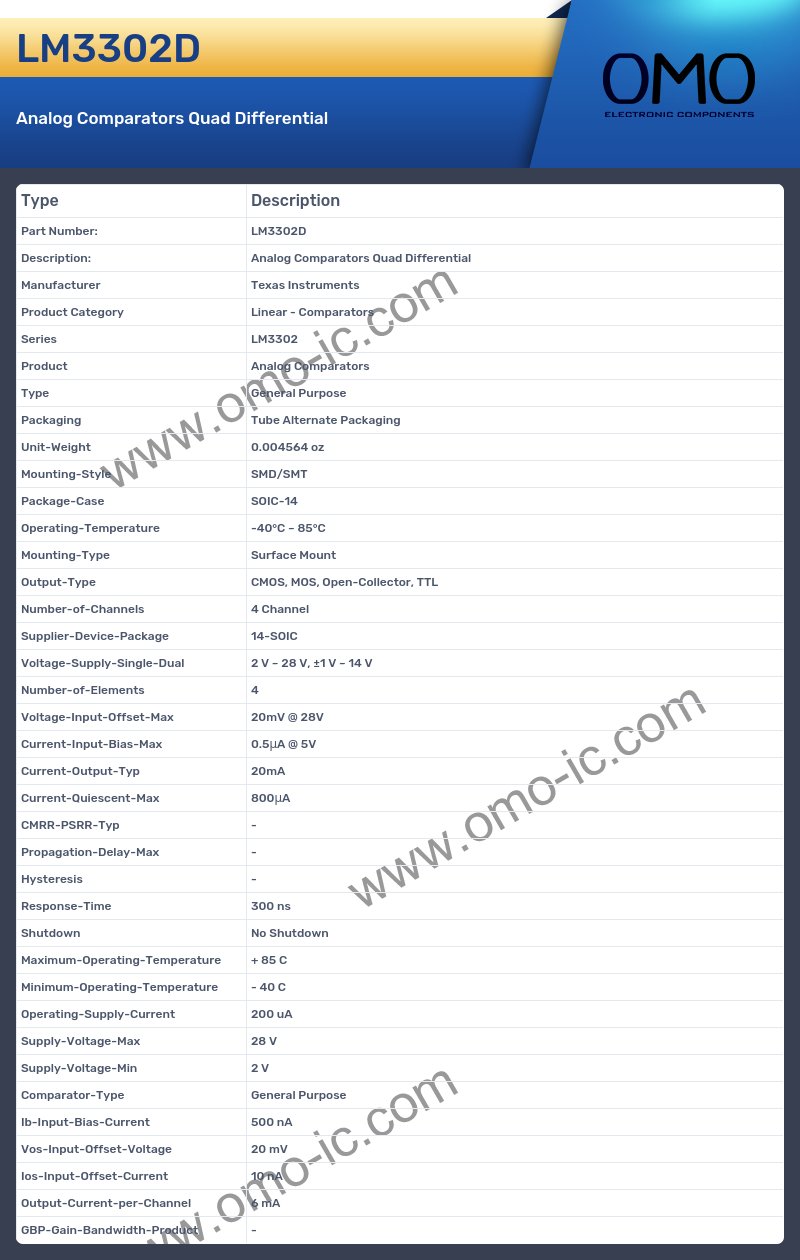

LM3302D Image

LM3302D Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series LM3302
• Product Analog Comparators
• Type General Purpose
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004564 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Collector, TTL
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOIC
• Voltage-Supply-Single-Dual 2 V ~ 28 V, ±1 V ~ 14 V
• Number-of-Elements 4
• Voltage-Input-Offset-Max 20mV @ 28V
• Current-Input-Bias-Max 0.5μA @ 5V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 800μA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 300 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 200 uA
• Supply-Voltage-Max 28 V
• Supply-Voltage-Min 2 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 500 nA
• Vos-Input-Offset-Voltage 20 mV
• Ios-Input-Offset-Current 10 nA
• Output-Current-per-Channel 6 mA
• GBP-Gain-Bandwidth-Product -
