LM393PT

LM393PT Overview

Product belongs to the LM393 series. This product is categorized as Analog Comparators Type: General Purpose Tape & Reel (TR) is the packaging method for this product Weight of 0.005573 oz SMD/SMT Mounting-Style TSSOP-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: CMOS, MOS, Open-Collector, TTL Number of channels: 2 Channel Supplier device package: 8-TSSOP Voltage supply range: 2 V ~ 36 V, ±1 V ~ 18 V 2 element 1mA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 1.3 us response time Power-off control: No Shutdown Power-off control: 625 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 1 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 2 V General Purpose comparator type Input bias current of 250 nA The 5 mV. The 150 nA. The Negative Rail to Positive Rail - 1.5 V. 18 mA

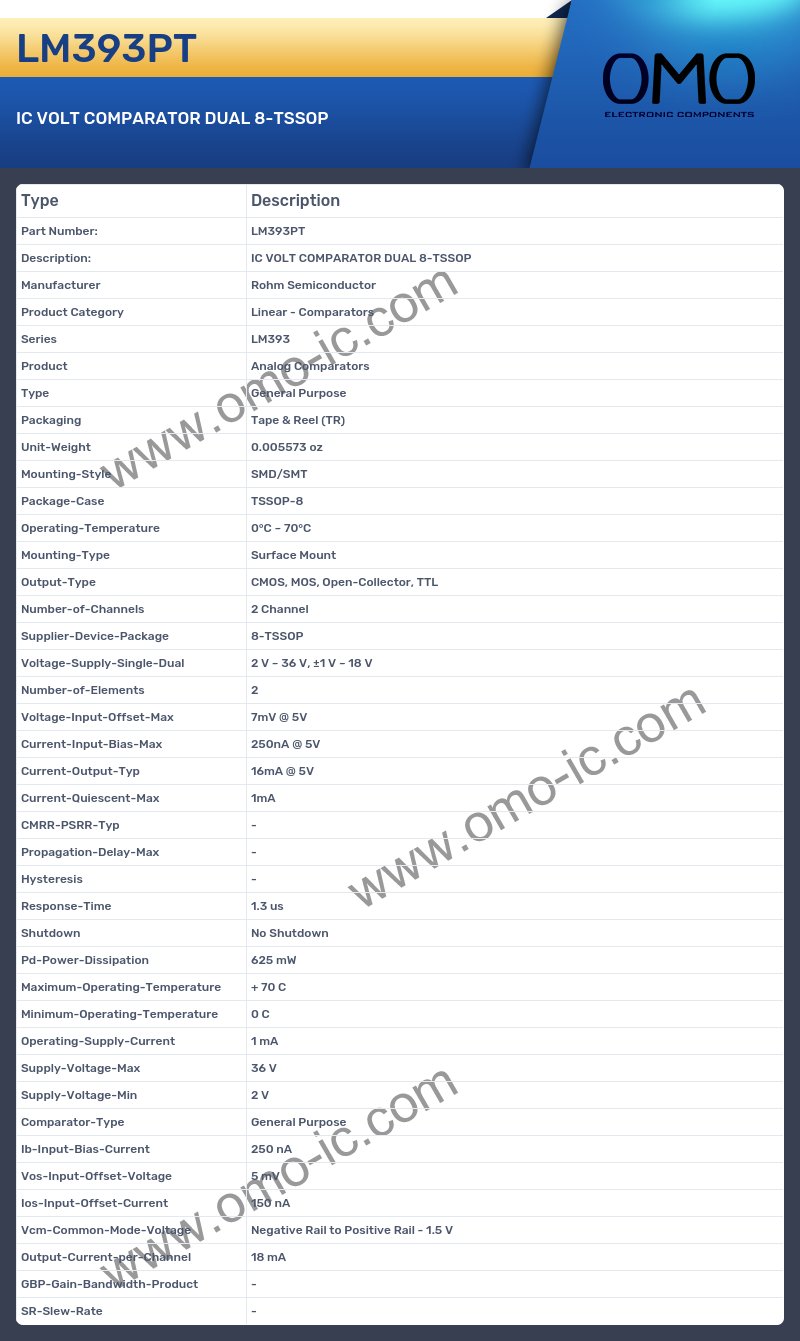

LM393PT Image

LM393PT Specifications

• Manufacturer Rohm Semiconductor
• Product Category Linear - Comparators
• Series LM393
• Product Analog Comparators
• Type General Purpose
• Packaging Tape & Reel (TR)
• Unit-Weight 0.005573 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type CMOS, MOS, Open-Collector, TTL
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-TSSOP
• Voltage-Supply-Single-Dual 2 V ~ 36 V, ±1 V ~ 18 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 7mV @ 5V
• Current-Input-Bias-Max 250nA @ 5V
• Current-Output-Typ 16mA @ 5V
• Current-Quiescent-Max 1mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 1.3 us
• Shutdown No Shutdown
• Pd-Power-Dissipation 625 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 1 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 250 nA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 150 nA
• Vcm-Common-Mode-Voltage Negative Rail to Positive Rail - 1.5 V
• Output-Current-per-Channel 18 mA
• GBP-Gain-Bandwidth-Product -
• SR-Slew-Rate -
