LM46002PWP

LM46002PWP Overview

Product belongs to the SIMPLE SWITCHERR series. Type: Step-Down Converter Tube Alternate Packaging is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style Wide - 40 C to + 125 C operating temperature range for diverse applications HTSSOP-16 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Down. Supplier device package: 16-HTSSOP Number-of-Outputs: 1 Topology: Buck feedback This product features 'Frequency-Switching' at 200kHz ~ 2.2MHz for optimal performance. The Positive. Minimum fixed output voltage is 1V . The value of Yes is included as a product attribute. The minimum input voltage is 3.5V. The 60V. Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1 V to 28 V Input Voltage Range: 3.5 V to 60 V Maximum Input Voltage: 60 V Output current: 2 A Switching frequency is 2.2 MHz The product's 3.5 V is 5.1 V. Minimum supply voltage is 3.5 V

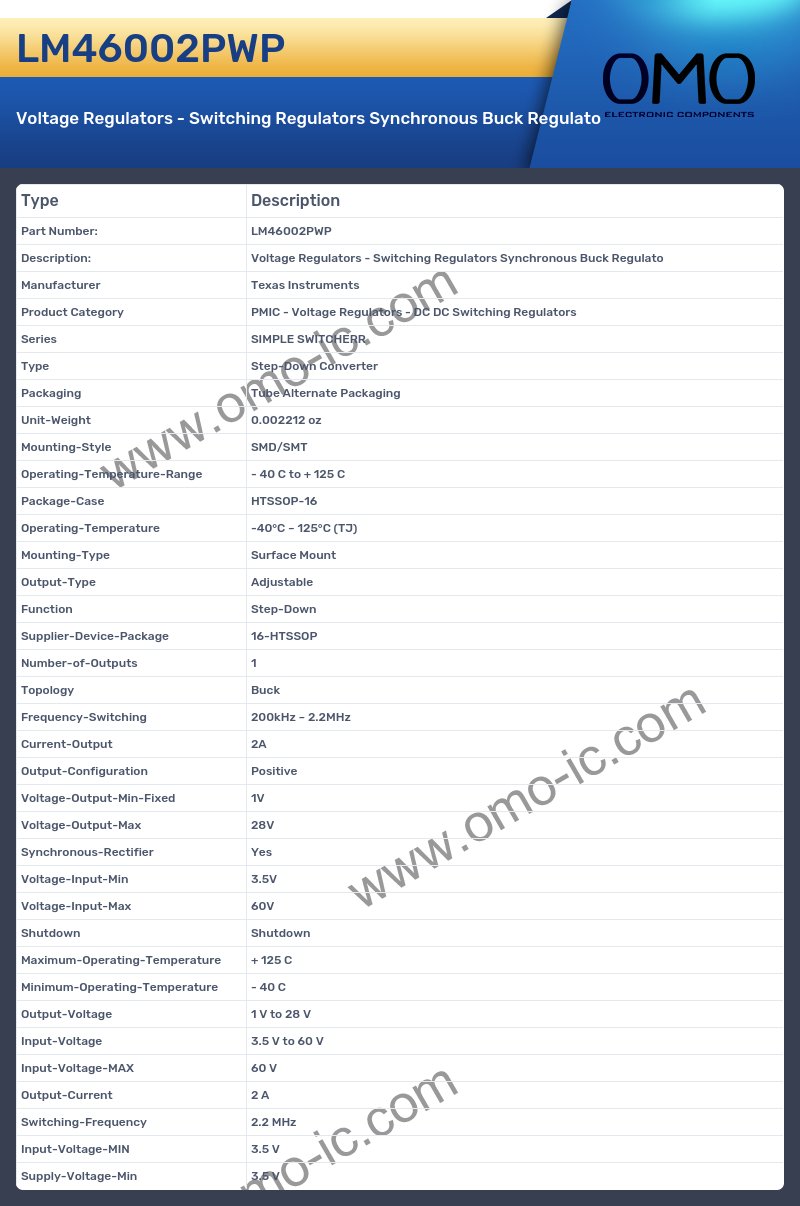

LM46002PWP Image

LM46002PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series SIMPLE SWITCHERR
• Type Step-Down Converter
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 125 C
• Package-Case HTSSOP-16
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Down
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 1
• Topology Buck
• Frequency-Switching 200kHz ~ 2.2MHz
• Current-Output 2A
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1V
• Voltage-Output-Max 28V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 3.5V
• Voltage-Input-Max 60V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1 V to 28 V
• Input-Voltage 3.5 V to 60 V
• Input-Voltage-MAX 60 V
• Output-Current 2 A
• Switching-Frequency 2.2 MHz
• Input-Voltage-MIN 3.5 V
• Supply-Voltage-Min 3.5 V
