LNBTVS6-220S

LNBTVS6-220S Overview

Product belongs to the LNBTVS, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 150 C operating temperature range for diverse applications 7.15 mm length of the product The 6.25 mm is at most 7.6 mm. DO-214AB, SMC Operational temperature range: -55°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: SMC - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 20V. The Voltage-Breakdown-Min is 22V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 3 kW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Breakdown-Voltage: 22 V Clamping-Voltage: 35 V 500 A Peak Surge Current 20 V working voltage Polarity: Unidirectional

LNBTVS6-220S Image

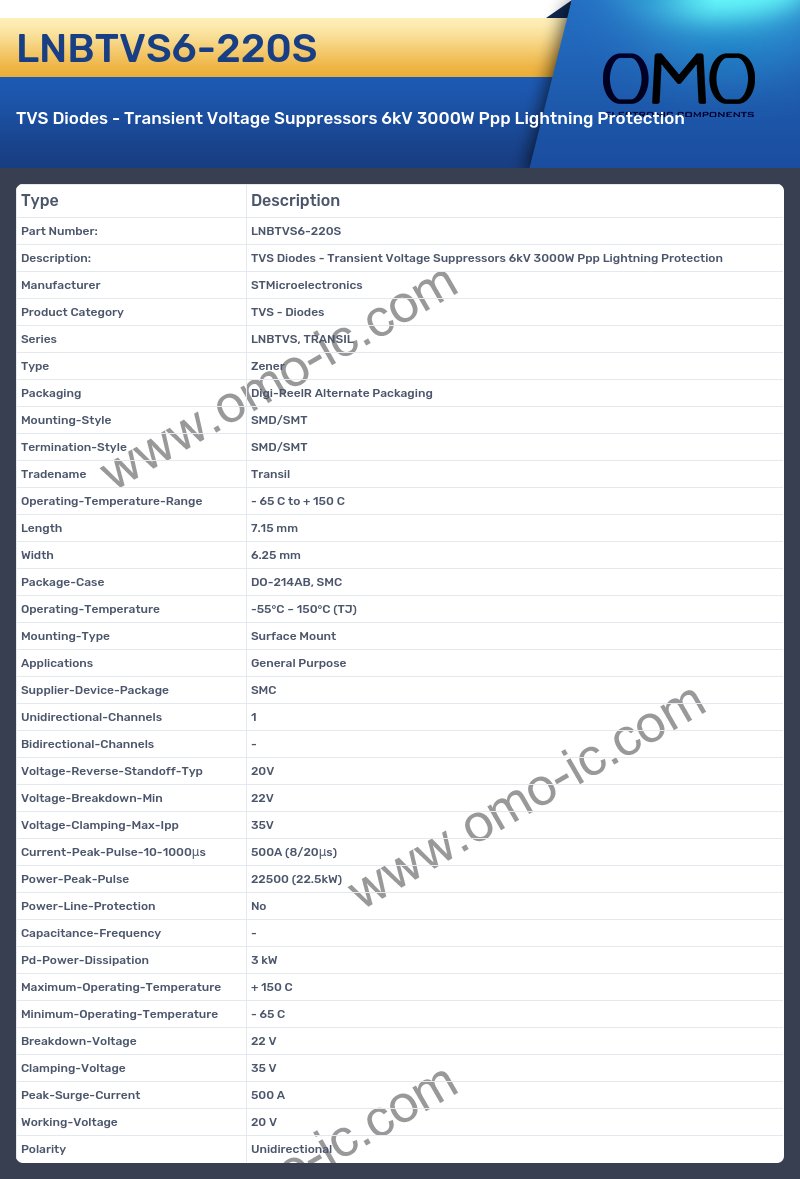

LNBTVS6-220S Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series LNBTVS, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 150 C
• Length 7.15 mm
• Width 6.25 mm
• Package-Case DO-214AB, SMC
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package SMC
• Unidirectional-Channels 1
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 20V
• Voltage-Breakdown-Min 22V
• Voltage-Clamping-Max-Ipp 35V
• Current-Peak-Pulse-10-1000μs 500A (8/20μs)
• Power-Peak-Pulse 22500 (22.5kW)
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 3 kW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 22 V
• Clamping-Voltage 35 V
• Peak-Surge-Current 500 A
• Working-Voltage 20 V
• Polarity Unidirectional
