LP2954AIM

LP2954AIM Overview

Product belongs to the LP2954A series. Tube is the packaging method for this product Weight of 0.006596 oz SMD/SMT Mounting-Style SOIC-Narrow-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Supplier device package: 8-SOIC 2.3 V ~ 30 V voltage input Number-of-Outputs: 1 Output Output voltage: 1.23 V ~ 29 V Positive Adjustable regulator topology The product has 1 of 1. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.23 V to 29 V Maximum Input Voltage: 30 V Output current: 0.25 A The product's - 20 V is 5.1 V. Load regulation is 0.16 %. The voltage regulation accuracy of this product is +/- 1.2 %. Input bias current of 120 uA Reference voltage is 1.245 V . The 0.06 V at 1 mA 0.24 V at 50 mA 0.31 V at 100 mA 0.47 V at 250 mA. The maximum 0.1 V at 1 mA 0.3 V at 50 mA 0.4 V at 100 mA 0.6 V at 250 mA is 360 mV. This product's 0.1 % is 0.01 %/V.

LP2954AIM Image

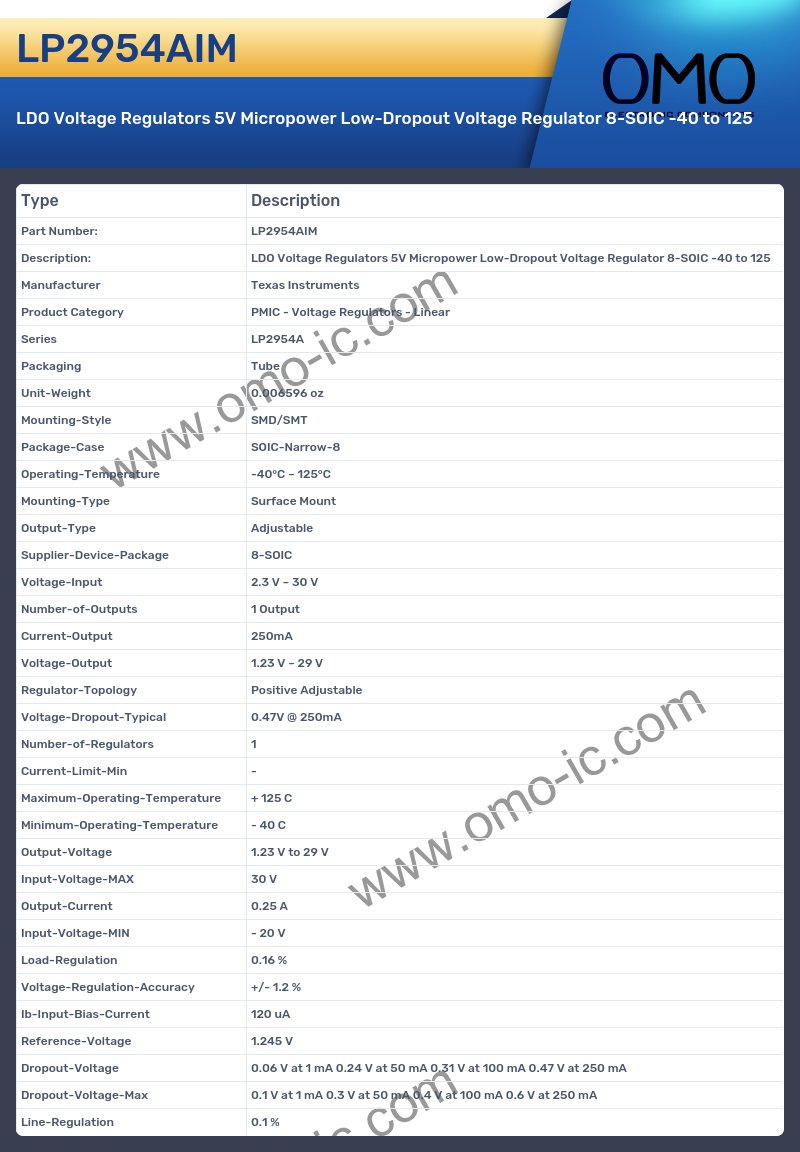

LP2954AIM Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series LP2954A
• Packaging Tube
• Unit-Weight 0.006596 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-Narrow-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Supplier-Device-Package 8-SOIC
• Voltage-Input 2.3 V ~ 30 V
• Number-of-Outputs 1 Output
• Current-Output 250mA
• Voltage-Output 1.23 V ~ 29 V
• Regulator-Topology Positive Adjustable
• Voltage-Dropout-Typical 0.47V @ 250mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.23 V to 29 V
• Input-Voltage-MAX 30 V
• Output-Current 0.25 A
• Input-Voltage-MIN - 20 V
• Load-Regulation 0.16 %
• Voltage-Regulation-Accuracy +/- 1.2 %
• Ib-Input-Bias-Current 120 uA
• Reference-Voltage 1.245 V
• Dropout-Voltage 0.06 V at 1 mA 0.24 V at 50 mA 0.31 V at 100 mA 0.47 V at 250 mA
• Dropout-Voltage-Max 0.1 V at 1 mA 0.3 V at 50 mA 0.4 V at 100 mA 0.6 V at 250 mA
• Line-Regulation 0.1 %
