M74HC533TTR

M74HC533TTR Overview

Product belongs to the 74HC series. Digi-ReelR is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Tri-State Number of channels: 8 Channels Voltage Supply Range: 2 V ~ 6 V Supplier device package: 20-TSSOP 8 Circuit is 8. Circuit type: 1899/12/30 8:08:00 D-Type Transparent Latch logic type 1 Independent Circuit The 12ns Delay-Time-Propagation. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Inverting Maximum supply current: 4 uA Maximum supply voltage of 6 V Minimum supply voltage is 2 V 74HC logic type 175 ns at 2 V 35 ns at 4.5 V 30 ns at 6 V is 23 microseconds. This product has a 4 uA of 7 mA, making it ideal for low-power applications. High-Level-Output-Current of - 7.8 mA 32 mA low-level output current Number-of-Input-Lines: 8 Line Number-of-Output-Lines: 3 Line

M74HC533TTR Image

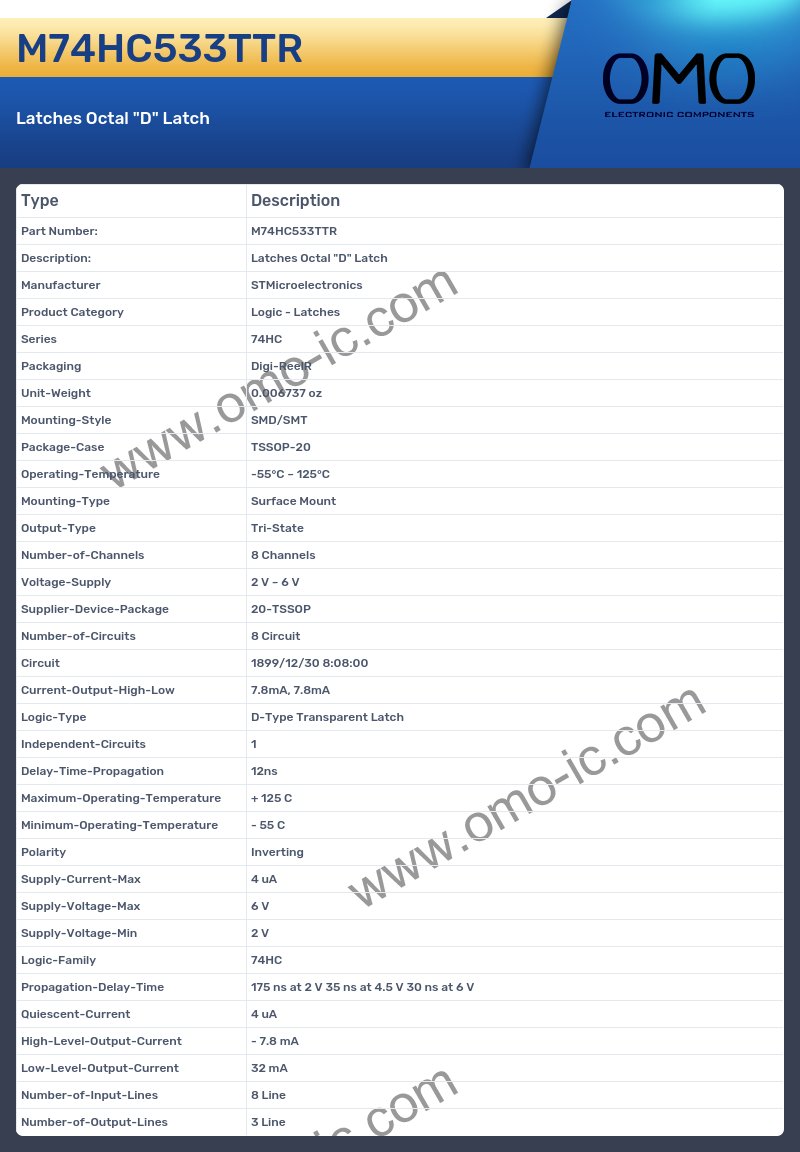

M74HC533TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Latches
• Series 74HC
• Packaging Digi-ReelR
• Unit-Weight 0.006737 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Tri-State
• Number-of-Channels 8 Channels
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 20-TSSOP
• Number-of-Circuits 8 Circuit
• Circuit 1899/12/30 8:08:00
• Current-Output-High-Low 7.8mA, 7.8mA
• Logic-Type D-Type Transparent Latch
• Independent-Circuits 1
• Delay-Time-Propagation 12ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Inverting
• Supply-Current-Max 4 uA
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family 74HC
• Propagation-Delay-Time 175 ns at 2 V 35 ns at 4.5 V 30 ns at 6 V
• Quiescent-Current 4 uA
• High-Level-Output-Current - 7.8 mA
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 8 Line
• Number-of-Output-Lines 3 Line
