M74HC688TTR

M74HC688TTR Overview

Product belongs to the 74HC series. This product is categorized as Digital Comparators Type: Identity Comparator Digi-ReelR is the packaging method for this product Weight of 0.006737 oz SMD/SMT Mounting-Style TSSOP-20 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Active Low Voltage Supply Range: 2 V ~ 6 V The Active Low. 8 bits The A=B of this product includes /OverTemp and /UnderTemp signals. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Maximum supply voltage of 6 V Minimum supply voltage is 2 V Identity comparator type 170 ns 34 ns 29 ns is 23 microseconds. A = B logic function

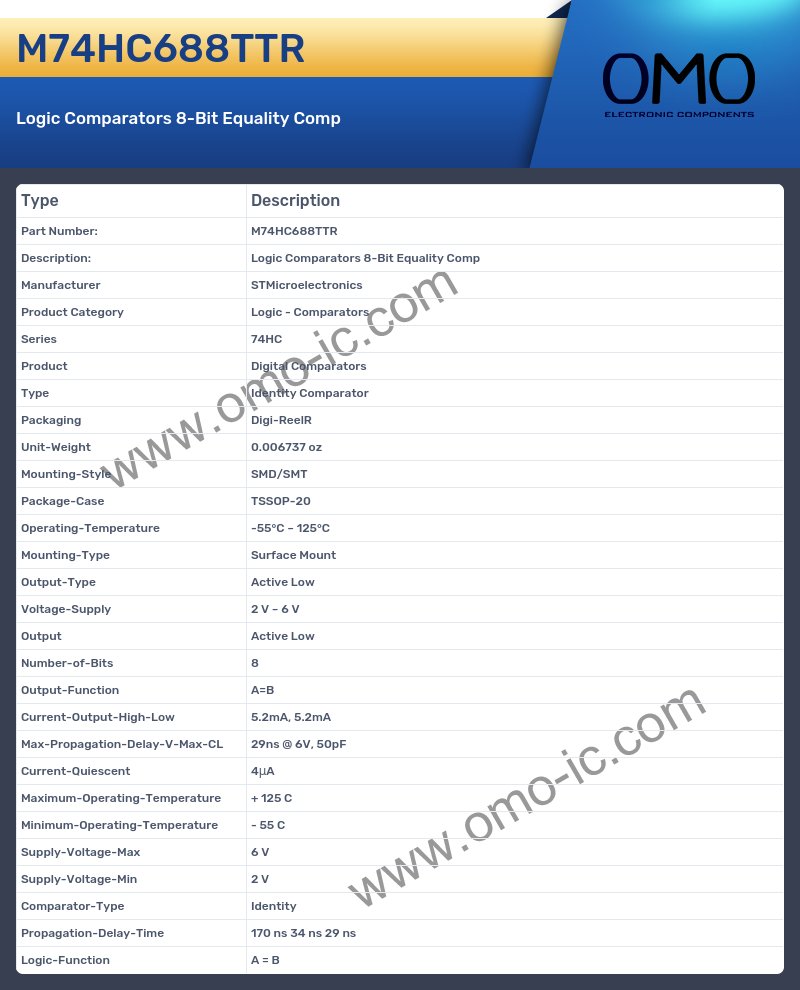

M74HC688TTR Image

M74HC688TTR Specifications

• Manufacturer STMicroelectronics
• Product Category Logic - Comparators
• Series 74HC
• Product Digital Comparators
• Type Identity Comparator
• Packaging Digi-ReelR
• Unit-Weight 0.006737 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-20
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Active Low
• Voltage-Supply 2 V ~ 6 V
• Output Active Low
• Number-of-Bits 8
• Output-Function A=B
• Current-Output-High-Low 5.2mA, 5.2mA
• Max-Propagation-Delay-V-Max-CL 29ns @ 6V, 50pF
• Current-Quiescent 4μA
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Comparator-Type Identity
• Propagation-Delay-Time 170 ns 34 ns 29 ns
• Logic-Function A = B
