MCP1406-E/SN Overview

This product is categorized as MOSFET Gate Drivers Type: High-Speed Power MOSFET Driver Tube is the packaging method for this product Weight of 540 mg SMD/SMT Mounting-Style SOIC-8 Configuration Inverting Number-of-Outputs: 1 Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: +/- 0.025 V 250 uA is 92 nA. Output current: 6 A This product has a 30 ns of 16 ns. This product has a 30 ns of 16 ns. Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver

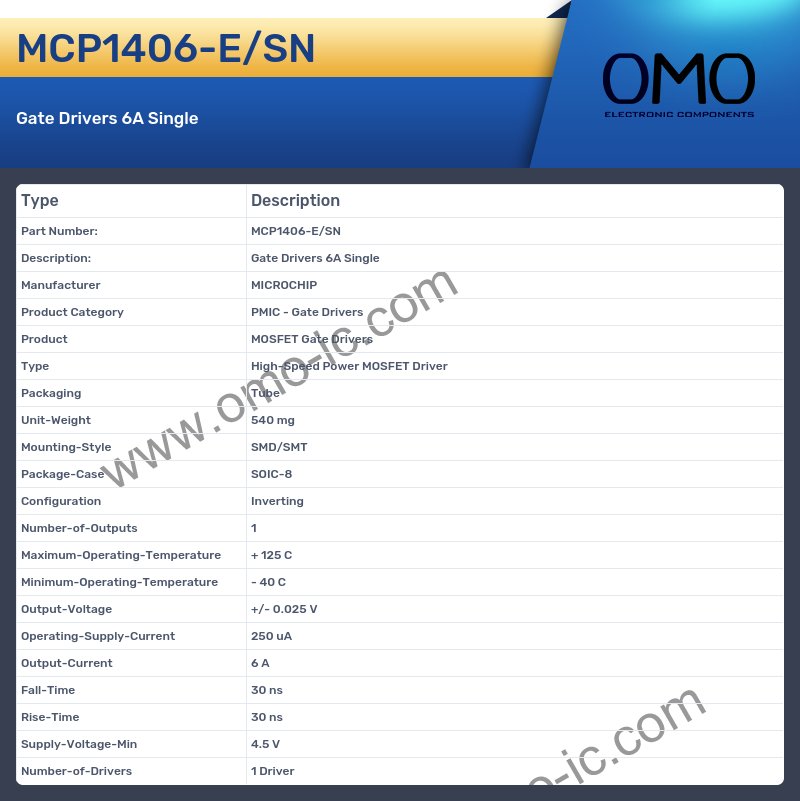

MCP1406-E/SN Image

MCP1406-E/SN Specifications

• Manufacturer MICROCHIP
• Product Category PMIC - Gate Drivers
• Product MOSFET Gate Drivers
• Type High-Speed Power MOSFET Driver
• Packaging Tube
• Unit-Weight 540 mg
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Configuration Inverting
• Number-of-Outputs 1
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage +/- 0.025 V
• Operating-Supply-Current 250 uA
• Output-Current 6 A
• Fall-Time 30 ns
• Rise-Time 30 ns
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
