Product belongs to the Automotive, AEC-Q100 series. This product is categorized as PWM Controllers Tube Alternate Packaging is the packaging method for this product Weight of 0.002497 oz SMD/SMT Mounting-Style QFN-28 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 28-QFN (5x5) Number-of-Outputs: 1 Topology: Boost, Cuk, Flyback, SEPIC feedback Supply Voltage: 4.5 V ~ 42 V This product features 'Frequency-Switching' at 31.25kHz ~ 2MHz for optimal performance. The Control-Features include - function. The Positive. Output-Phases: 1 Maximum duty cycle of The value of No is included as a product attribute. No enabled Serial Interfaces: I2C Power-off control: Yes The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 42 V supply voltage for reliable performance. This product is an Digitally enhanced power analog synchronous PWM controller. Input Voltage Range: 4.5 V to 42 V Switching frequency is 31.25 kHz to 2 MHz This product has a 30 ns of 16 ns. This product has a 40 ns of 16 ns.

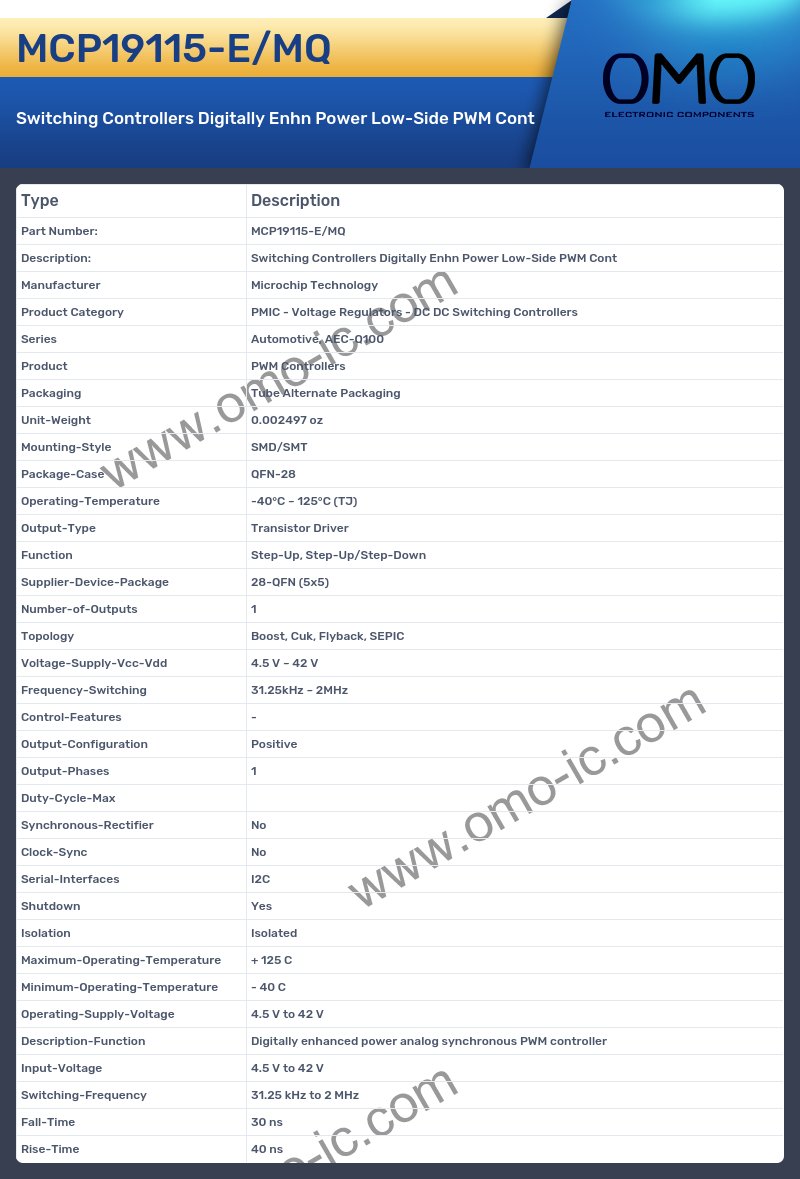

MCP19115-E/MQ Image

MCP19115-E/MQ Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series Automotive, AEC-Q100
• Product PWM Controllers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002497 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-28
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 28-QFN (5x5)
• Number-of-Outputs 1
• Topology Boost, Cuk, Flyback, SEPIC
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 42 V
• Frequency-Switching 31.25kHz ~ 2MHz
• Control-Features -
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces I2C
• Shutdown Yes
• Isolation Isolated
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 42 V
• Description-Function Digitally enhanced power analog synchronous PWM controller
• Input-Voltage 4.5 V to 42 V
• Switching-Frequency 31.25 kHz to 2 MHz
• Fall-Time 30 ns
• Rise-Time 40 ns
