MCP23017T-E/ML

MCP23017T-E/ML Overview

Product belongs to the - series. This product is categorized as I/O Expanders Type: I/O Expander Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002497 oz SMD/SMT Mounting-Style QFN-28 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Push-Pull Interface: I2C Voltage Supply Range: 1.8 V ~ 5.5 V Supplier device package: 28-QFN (6x6) This product has 16 I/O ports for versatile connectivity. The product features an Yes output. 1.7MHz is 26GHz. Power-off control: 700 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 5.5 V supply voltage for reliable performance. 1 mA is 92 nA. I2C Serial interface type Output current: 25 mA MCP23017 logic type Maximum clock frequency of 1.7 MHz This product has 16 I/O connections.

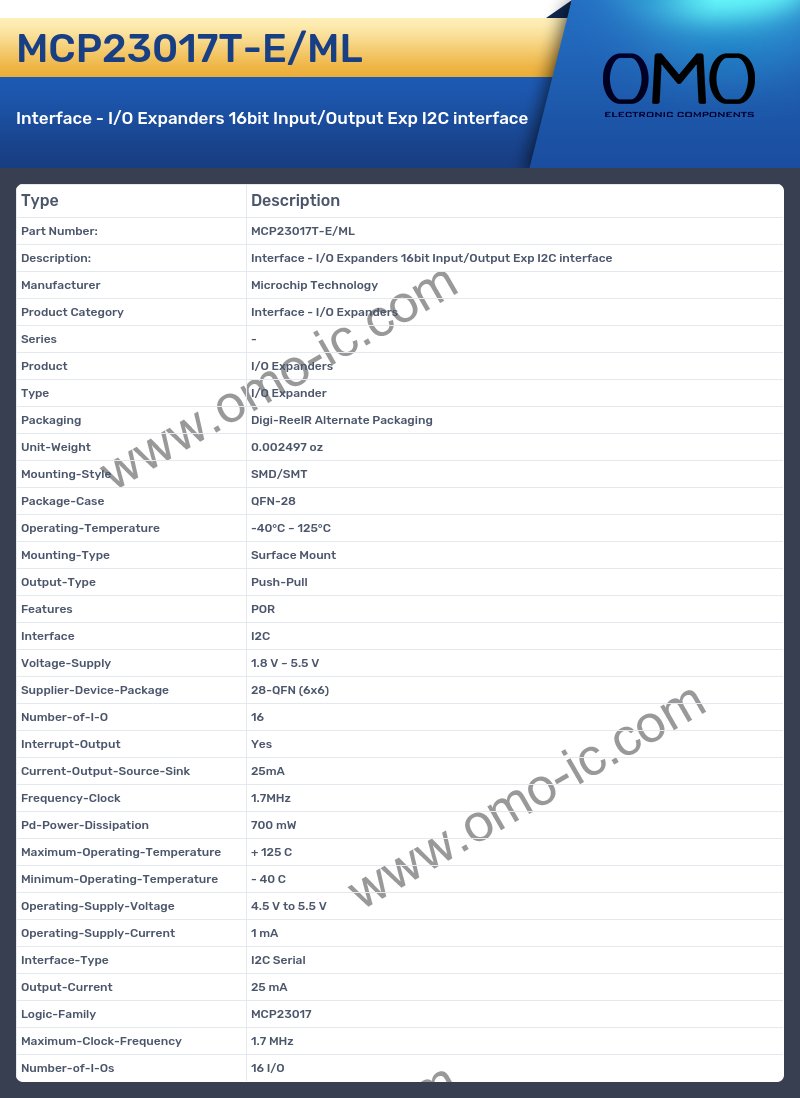

MCP23017T-E/ML Image

MCP23017T-E/ML Specifications

• Manufacturer Microchip Technology
• Product Category Interface - I/O Expanders
• Series -
• Product I/O Expanders
• Type I/O Expander
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002497 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-28
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Features POR
• Interface I2C
• Voltage-Supply 1.8 V ~ 5.5 V
• Supplier-Device-Package 28-QFN (6x6)
• Number-of-I-O 16
• Interrupt-Output Yes
• Current-Output-Source-Sink 25mA
• Frequency-Clock 1.7MHz
• Pd-Power-Dissipation 700 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 5.5 V
• Operating-Supply-Current 1 mA
• Interface-Type I2C Serial
• Output-Current 25 mA
• Logic-Family MCP23017
• Maximum-Clock-Frequency 1.7 MHz
• Number-of-I-Os 16 I/O
