MCP98243-BE/MC Overview

Product belongs to the MCP98243 series. This product is categorized as DIMM Sensor with EEPROM Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style DFN-8 EP Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: I2C/SMBus Product function is Temp Monitoring System (Sensor), DIMM DDR Memory. Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 8-DFN (2x3) Configuration Local Topology: ADC (Sigma Delta), Register Bank feedback Accuracy is rated at ±3°C(Max) . Internal Our product includes an Output-Alarm feature to alert users of potential issues, Yes. No fan output available Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 200 uA is 92 nA. 2-Wire I2C SMBus interface type Output current: 1 uA Maximum supply voltage of 3.6 VDC Minimum supply voltage is 3 VDC Programmable temperature threshold

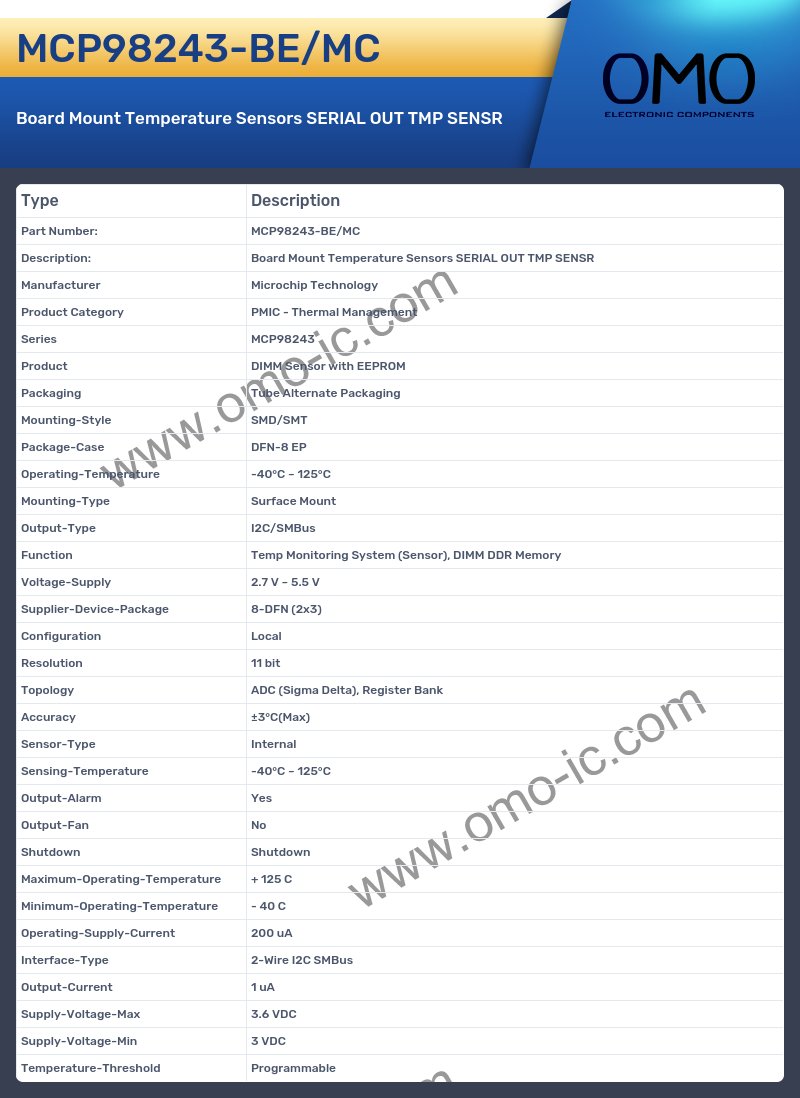

MCP98243-BE/MC Image

MCP98243-BE/MC Specifications

• Manufacturer Microchip Technology
• Product Category PMIC - Thermal Management
• Series MCP98243
• Product DIMM Sensor with EEPROM
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case DFN-8 EP
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type I2C/SMBus
• Function Temp Monitoring System (Sensor), DIMM DDR Memory
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 8-DFN (2x3)
• Configuration Local
• Resolution 11 bit
• Topology ADC (Sigma Delta), Register Bank
• Accuracy ±3°C(Max)
• Sensor-Type Internal
• Sensing-Temperature -40°C ~ 125°C
• Output-Alarm Yes
• Output-Fan No
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 200 uA
• Interface-Type 2-Wire I2C SMBus
• Output-Current 1 uA
• Supply-Voltage-Max 3.6 VDC
• Supply-Voltage-Min 3 VDC
• Temperature-Threshold Programmable
