MD1803DFX

MD1803DFX Overview

Product belongs to the 1000V Transistors series. Tube is the packaging method for this product Through Hole Mounting-Style ISOWATT218FX-3 Configuration Single Power-off control: 57 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 700 V The transistor polarity is NPN. 10 V rating of 5 V Max DC collector current: 15 A This product is capable of handling a 10 A continuous collector current. Minimum hfe for DC collector-base gain is 5.5. The 10000 mA Peak DC Collector Current;

MD1803DFX Image

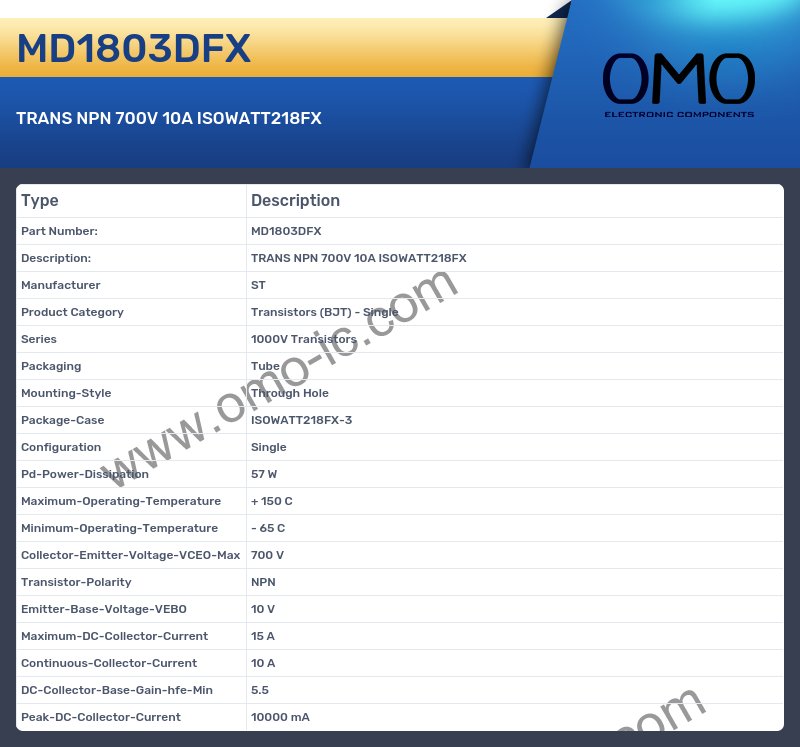

MD1803DFX Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Series 1000V Transistors
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case ISOWATT218FX-3
• Configuration Single
• Pd-Power-Dissipation 57 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 700 V
• Transistor-Polarity NPN
• Emitter-Base-Voltage-VEBO 10 V
• Maximum-DC-Collector-Current 15 A
• Continuous-Collector-Current 10 A
• DC-Collector-Base-Gain-hfe-Min 5.5
• Peak-DC-Collector-Current 10000 mA
