| Mfr. #: | MJD45H11T4 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | Bipolar Transistors - BJT PNP Gen Pur Switch |
| 生命周期: | 制造商新产品。 |
| 数据表: | MJD45H11T4 数据表 |
Product belongs to the MJD45H11T4 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount mounting type Supplier device package: D-Pak Configuration Single Transistor type: PNP Maximum current collector Ic is 8A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 40 @ 4A, 1V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1V @ 400mA, 8A Power-off control: 20 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 80 V The transistor polarity is PNP. Saturation voltage between collector and emitter is 1 V The 80 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 16 A This product is capable of handling a 8 A continuous collector current. Minimum hfe for DC collector-base gain is 60.

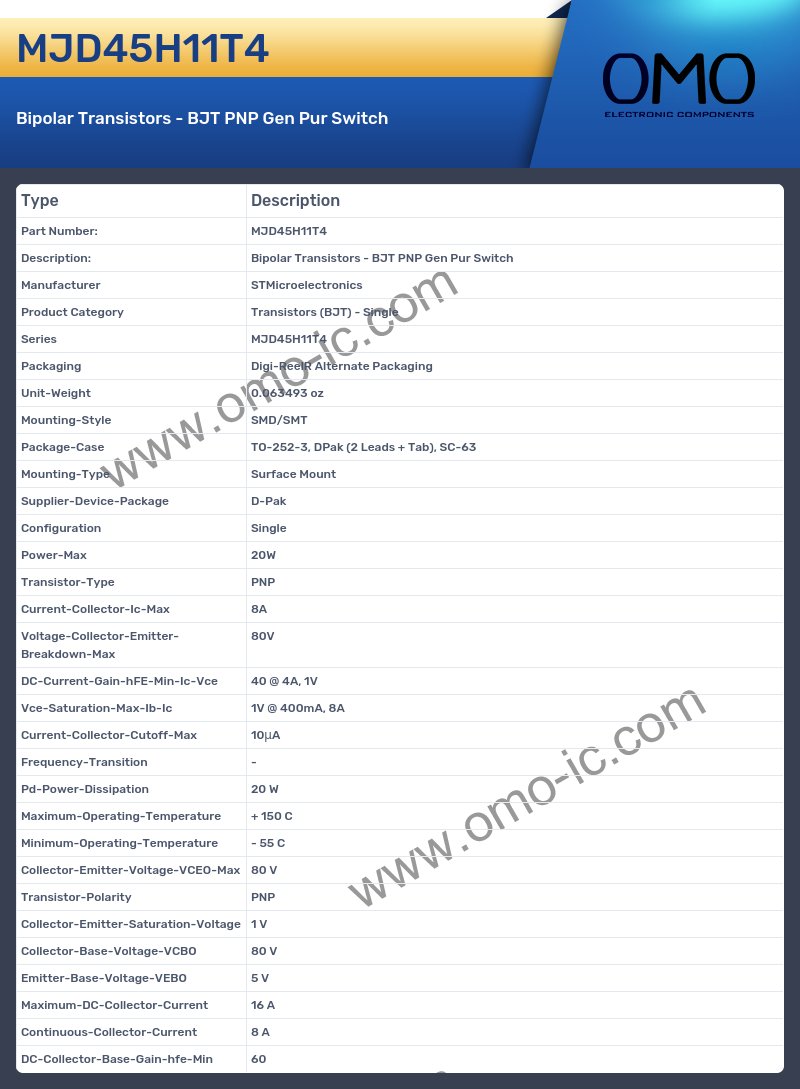

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MJD45H11T4 Specifications
A: What is the Series of the product?
Q: The Series of the product is MJD45H11T4.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.063493 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed D-Pak
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 8A.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 80V
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 40 @ 4A, 1V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 1V @ 400mA, 8A
A: At what frequency does the Pd-Power-Dissipation?
Q: The product Pd-Power-Dissipation is 20 W.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 150 C
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 80 V.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is PNP.
A: What is the Collector-Emitter-Saturation-Voltage of the product?
Q: The Collector-Emitter-Saturation-Voltage of the product is 1 V.
A: Is the cutoff frequency of the product Collector-Base-Voltage-VCBO?
Q: Yes, the product's Collector-Base-Voltage-VCBO is indeed 80 V
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 16 A.
A: Is the cutoff frequency of the product Continuous-Collector-Current?
Q: Yes, the product's Continuous-Collector-Current is indeed 8 A
A: What is the DC-Collector-Base-Gain-hfe-Min of the product?
Q: The DC-Collector-Base-Gain-hfe-Min of the product is 60.
