MPC8309VMADDCA

MPC8309VMADDCA Overview

Product belongs to the MPC83xx series. Tray is the packaging method for this product Weight of 0.036516 oz SMD/SMT Mounting-Style Trade name: PowerQUICC. MAPBGA-489 Operational temperature range: 0°C ~ 105°C (TA) Supplier device package: 489-PBGA (19x19) L1 Cache memory type 1.8V, 3.3V voltage I/O Operating frequency: 266MHz The processor has a 1 Core, 32-Bit architecture. This product's Communications; QUICC Engine co-processor DSP offers high-performance signal processing capabilities. RAM-Controllers:DDR2 The Graphics-Acceleration attribute for this product is No. Ethernet with a transmission rate of 10/100 Mbps (3) 1 Core Number of Cores Maximum operating temperature of + 105 C Minimum operating temperature: 0 C This product operates at a 1 V supply voltage for reliable performance. Ethernet I2C PCIe SPI UART USB interface type Processor Core: e300c3 This product is powered by the PowerQUICC II Pro Processor-Series, providing high performance and efficiency. The 32 bit. Maximum clock frequency of 266 MHz This product has 56 I/O connections. L1 Cache Instruction Memory of 16 kB. The L1 Cache Data Memory is 16 kB. This product features an 1.8 V 3.3 V, providing flexibility for a variety of applications. This product includes Watchdog Timer

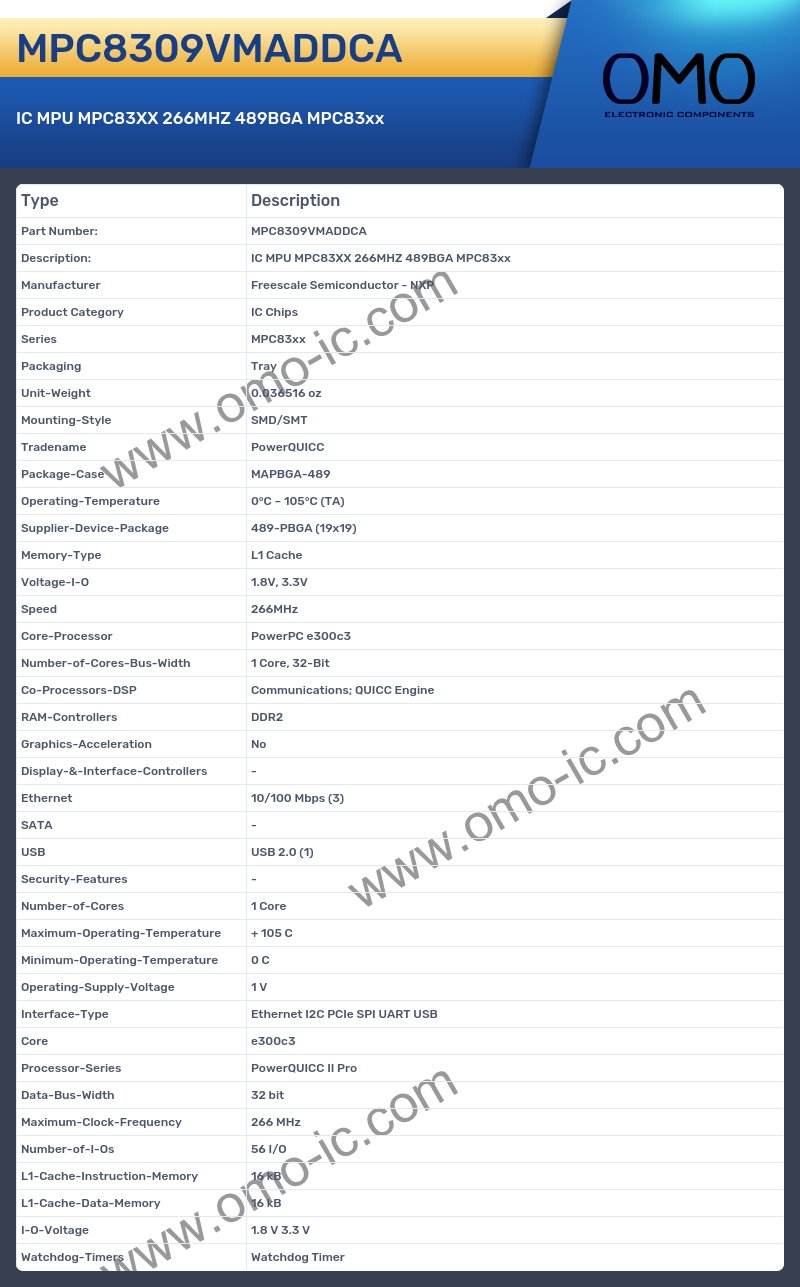

MPC8309VMADDCA Image

MPC8309VMADDCA Specifications

• Manufacturer Freescale Semiconductor - NXP
• Product Category IC Chips
• Series MPC83xx
• Packaging Tray
• Unit-Weight 0.036516 oz
• Mounting-Style SMD/SMT
• Tradename PowerQUICC
• Package-Case MAPBGA-489
• Operating-Temperature 0°C ~ 105°C (TA)
• Supplier-Device-Package 489-PBGA (19x19)
• Memory-Type L1 Cache
• Voltage-I-O 1.8V, 3.3V
• Speed 266MHz
• Core-Processor PowerPC e300c3
• Number-of-Cores-Bus-Width 1 Core, 32-Bit
• Co-Processors-DSP Communications; QUICC Engine
• RAM-Controllers DDR2
• Graphics-Acceleration No
• Display-&-Interface-Controllers -
• Ethernet 10/100 Mbps (3)
• SATA -
• USB USB 2.0 (1)
• Security-Features -
• Number-of-Cores 1 Core
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Voltage 1 V
• Interface-Type Ethernet I2C PCIe SPI UART USB
• Core e300c3
• Processor-Series PowerQUICC II Pro
• Data-Bus-Width 32 bit
• Maximum-Clock-Frequency 266 MHz
• Number-of-I-Os 56 I/O
• L1-Cache-Instruction-Memory 16 kB
• L1-Cache-Data-Memory 16 kB
• I-O-Voltage 1.8 V 3.3 V
• Watchdog-Timers Watchdog Timer
