OPA2544T Overview

Product belongs to the OPA2544 series. This product is categorized as Operational Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style BiFET is the technology used. Number of channels: 2 Channel The amplifier is of High Output Current Amplifier type. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 30 mA is 92 nA. TO-220-11 Input bias current of 50 pA The 5 mV. The Negative Rail + 6 V to Positive Rail - 6 V. 2 A The CMRR-Common-Mode-Rejection-Ratio is 90 dB. The 36 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.003 pA/sqrt Hz. Maximum dual supply voltage: +/- 35 V Minimum dual supply voltage of +/- 10 V

OPA2544T Image

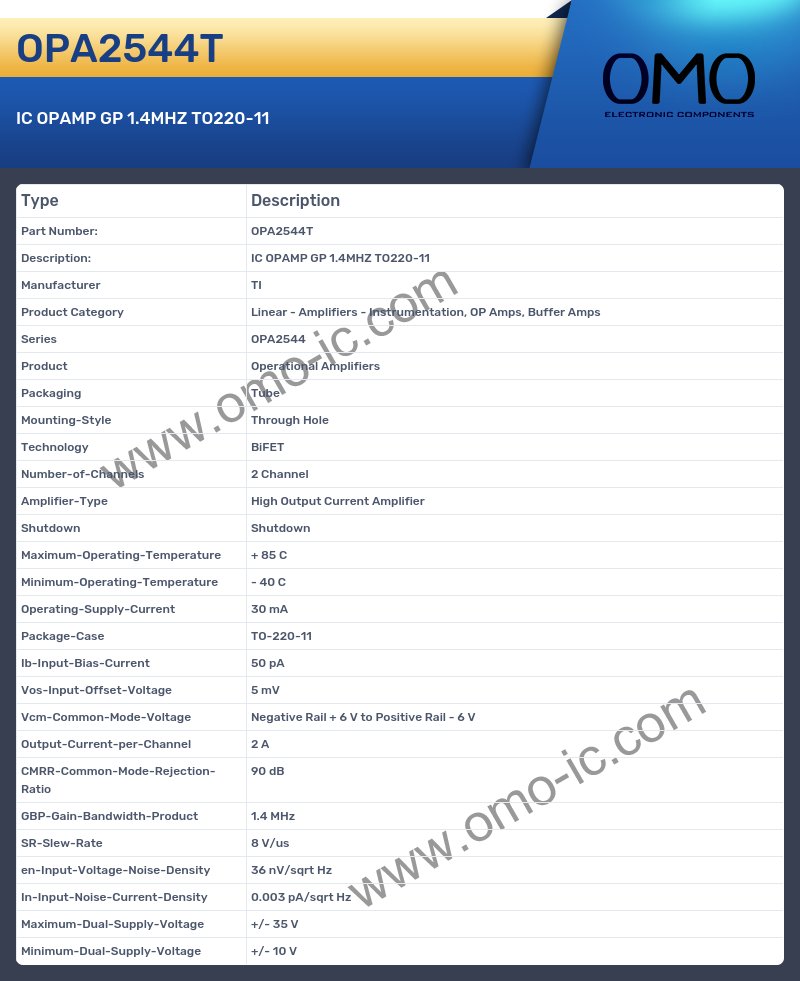

OPA2544T Specifications

• Manufacturer TI
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series OPA2544
• Product Operational Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Technology BiFET
• Number-of-Channels 2 Channel
• Amplifier-Type High Output Current Amplifier
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 mA
• Package-Case TO-220-11
• Ib-Input-Bias-Current 50 pA
• Vos-Input-Offset-Voltage 5 mV
• Vcm-Common-Mode-Voltage Negative Rail + 6 V to Positive Rail - 6 V
• Output-Current-per-Channel 2 A
• CMRR-Common-Mode-Rejection-Ratio 90 dB
• GBP-Gain-Bandwidth-Product 1.4 MHz
• SR-Slew-Rate 8 V/us
• en-Input-Voltage-Noise-Density 36 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.003 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 35 V
• Minimum-Dual-Supply-Voltage +/- 10 V
