PCM1690DCA

PCM1690DCA Overview

Product belongs to the Automotive, AEC-Q100 series. This product is categorized as Audio DACs Type: DAC, Audio Tube Alternate Packaging is the packaging method for this product Weight of 0.007422 oz SMD/SMT Mounting-Style HTSSOP-48 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Number of channels: 8 Channel Voltage Supply Range: 3 V ~ 3.6 V, 5V Supplier device package: 48-HTSSOP Resolution-Bits: 24 b This product's 192k. Data-Interface: DSP, I2S Voltage supply source: Analog and digital Analog and Digital Power-off control: 621 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Output voltage: 8 V 74 mA 76 mA is 92 nA. I2C SPI interface type Number of DAC Outputs: 8 Output Signal-to-Noise Ratio of 113 dB The +/- 6 % FSR of this product is 0.2%. This product has a 0.002 % for clear and precise audio. Dynamic-Range-dB: 113 dB Number-of-Converters: 8 Converter 192 kS/s Sampling Rate Analog and Digital supply type Number of DACs: 8 DAC

PCM1690DCA Image

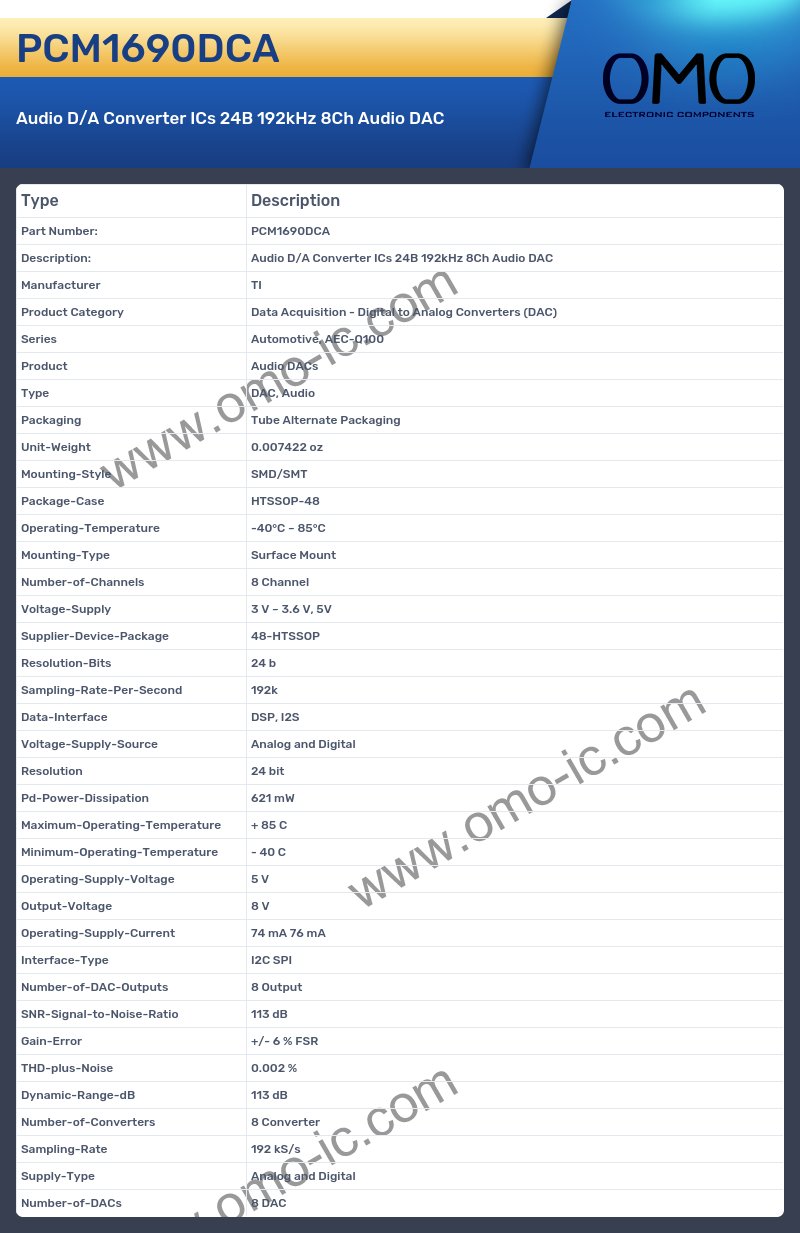

PCM1690DCA Specifications

• Manufacturer TI
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series Automotive, AEC-Q100
• Product Audio DACs
• Type DAC, Audio
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007422 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-48
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Number-of-Channels 8 Channel
• Voltage-Supply 3 V ~ 3.6 V, 5V
• Supplier-Device-Package 48-HTSSOP
• Resolution-Bits 24 b
• Sampling-Rate-Per-Second 192k
• Data-Interface DSP, I2S
• Voltage-Supply-Source Analog and Digital
• Resolution 24 bit
• Pd-Power-Dissipation 621 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Output-Voltage 8 V
• Operating-Supply-Current 74 mA 76 mA
• Interface-Type I2C SPI
• Number-of-DAC-Outputs 8 Output
• SNR-Signal-to-Noise-Ratio 113 dB
• Gain-Error +/- 6 % FSR
• THD-plus-Noise 0.002 %
• Dynamic-Range-dB 113 dB
• Number-of-Converters 8 Converter
• Sampling-Rate 192 kS/s
• Supply-Type Analog and Digital
• Number-of-DACs 8 DAC
