PCM3501E

PCM3501E Overview

Product belongs to the SoundPlus series. This product is categorized as Audio CODECs Type: Voice-Band Tube Alternate Packaging is the packaging method for this product Weight of 0.007764 oz SMD/SMT Mounting-Style SSOP-24 Operational temperature range: -25°C ~ 85°C Surface Mount mounting type Supplier device package: 24-SSOP Resolution-Bits: 16 b Data-Interface: Serial The Voltage-Supply-Analog is 2.7 V ~ 3.6 V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V. 2016/1/1 0:00:00 Yes is supported. Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C This product operates at a 2.7 V to 3.6 V supply voltage for reliable performance. 12 uA is 92 nA. Serial interface type This product boasts a Conversion-Rate of ' 26 kHz ' for exceptional audio quality. Signal-to-Noise Ratio of 88 dB ADC/94 dB DAC Maximum supply voltage of 3.6 V Minimum supply voltage is 2.7 V This product has a - 85 dB ADC/- 90 dB DAC for clear and precise audio. Number of DACs: 1 DAC This product features 1 ADC.

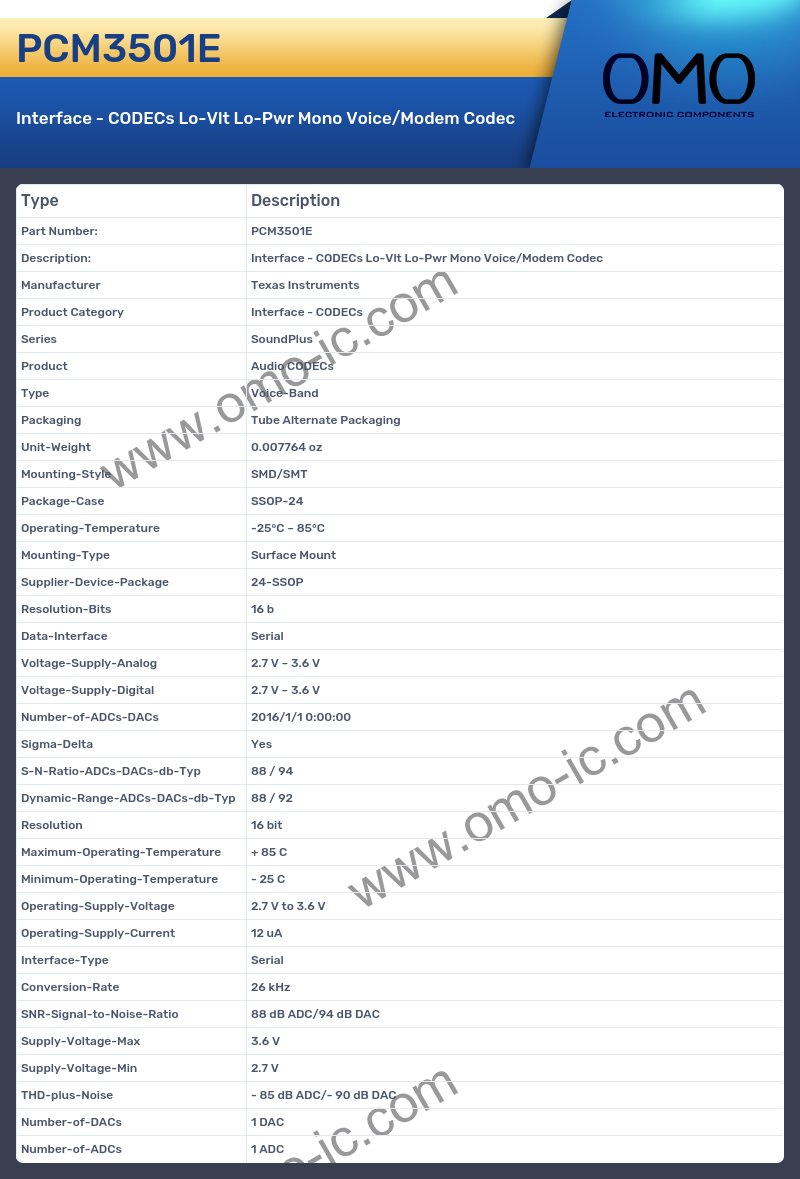

PCM3501E Image

PCM3501E Specifications

• Manufacturer Texas Instruments
• Product Category Interface - CODECs
• Series SoundPlus
• Product Audio CODECs
• Type Voice-Band
• Packaging Tube Alternate Packaging
• Unit-Weight 0.007764 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-24
• Operating-Temperature -25°C ~ 85°C
• Mounting-Type Surface Mount
• Supplier-Device-Package 24-SSOP
• Resolution-Bits 16 b
• Data-Interface Serial
• Voltage-Supply-Analog 2.7 V ~ 3.6 V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V
• Number-of-ADCs-DACs 2016/1/1 0:00:00
• Sigma-Delta Yes
• S-N-Ratio-ADCs-DACs-db-Typ 88 / 94
• Dynamic-Range-ADCs-DACs-db-Typ 88 / 92
• Resolution 16 bit
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Voltage 2.7 V to 3.6 V
• Operating-Supply-Current 12 uA
• Interface-Type Serial
• Conversion-Rate 26 kHz
• SNR-Signal-to-Noise-Ratio 88 dB ADC/94 dB DAC
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 2.7 V
• THD-plus-Noise - 85 dB ADC/- 90 dB DAC
• Number-of-DACs 1 DAC
• Number-of-ADCs 1 ADC
