PD54003L-E Overview

Product belongs to the PD54003L-E series. Type: RF Power MOSFET Reel is the packaging method for this product SMD/SMT Mounting-Style PowerFLAT (5x5) Si is the technology used. The device offers a 20 dB at 500 MHz of 26dB. Power-off control: 19.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C The operating frequency is 1 GHz. This product's 15 V. The ID of continuous drain current is 4 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 25 V. The transistor polarity is N-Channel.

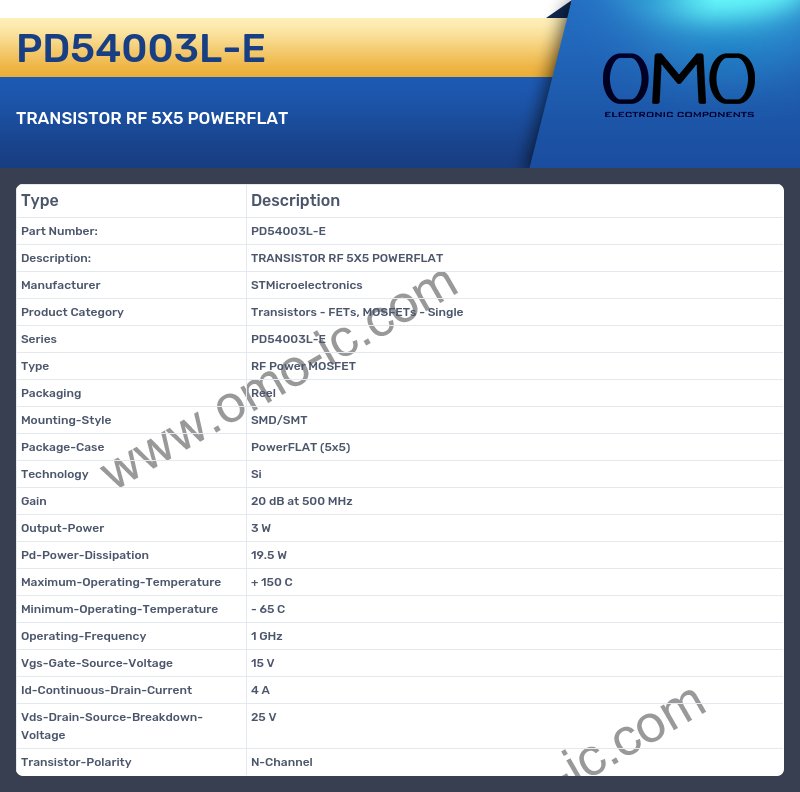

PD54003L-E Image

PD54003L-E Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series PD54003L-E
• Type RF Power MOSFET
• Packaging Reel
• Mounting-Style SMD/SMT
• Package-Case PowerFLAT (5x5)
• Technology Si
• Gain 20 dB at 500 MHz
• Output-Power 3 W
• Pd-Power-Dissipation 19.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Operating-Frequency 1 GHz
• Vgs-Gate-Source-Voltage 15 V
• Id-Continuous-Drain-Current 4 A
• Vds-Drain-Source-Breakdown-Voltage 25 V
• Transistor-Polarity N-Channel
