PD57060S-E

PD57060S-E Overview

Product belongs to the PD57060-E series. Type: RF Power MOSFET Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10RF (Straight Lead) Si is the technology used. The device offers a 14.3 dB at 945 MHz of 26dB. Power-off control: 79 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C The operating frequency is 1 GHz. This product's +/- 20 V. The ID of continuous drain current is 7 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 65 V. The transistor polarity is N-Channel.

PD57060S-E Image

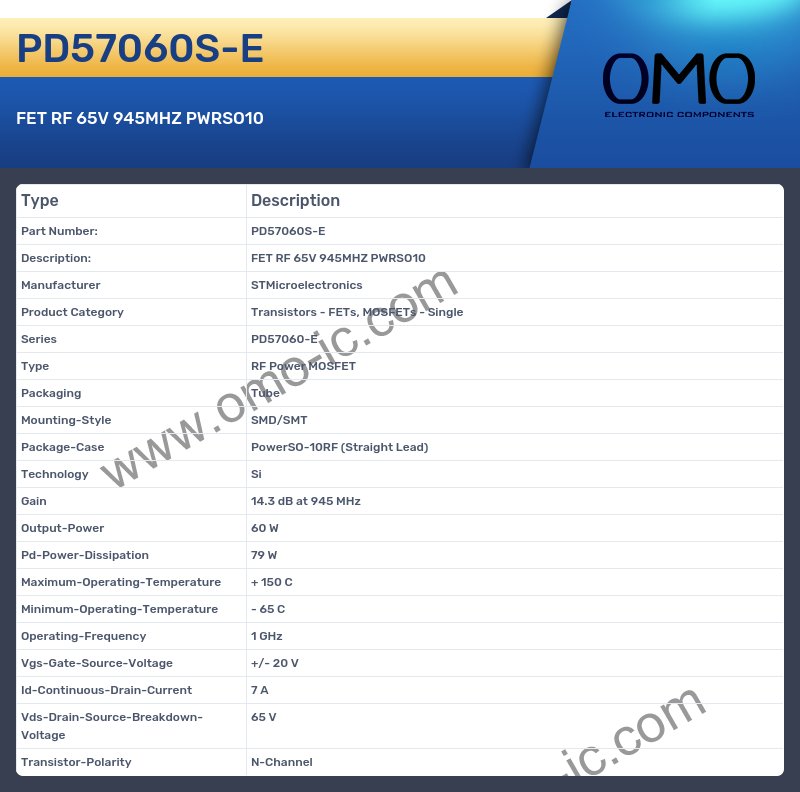

PD57060S-E Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors - FETs, MOSFETs - Single
• Series PD57060-E
• Type RF Power MOSFET
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10RF (Straight Lead)
• Technology Si
• Gain 14.3 dB at 945 MHz
• Output-Power 60 W
• Pd-Power-Dissipation 79 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Operating-Frequency 1 GHz
• Vgs-Gate-Source-Voltage +/- 20 V
• Id-Continuous-Drain-Current 7 A
• Vds-Drain-Source-Breakdown-Voltage 65 V
• Transistor-Polarity N-Channel
