PIC16F1783-E/SS

PIC16F1783-E/SS Overview

Product belongs to the PICR XLP 16F series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style SSOP-28 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-SSOP This product has 24 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, LIN, SPI, UART/USART interface Supply Voltage: 2.3 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2.3 V to 5.5 V supply voltage for reliable performance. Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum clock frequency of 32 MHz This product has a 512 B data RAM size, providing ample storage for complex applications. This product features a high-precision 12 bit, ensuring accurate data conversion.

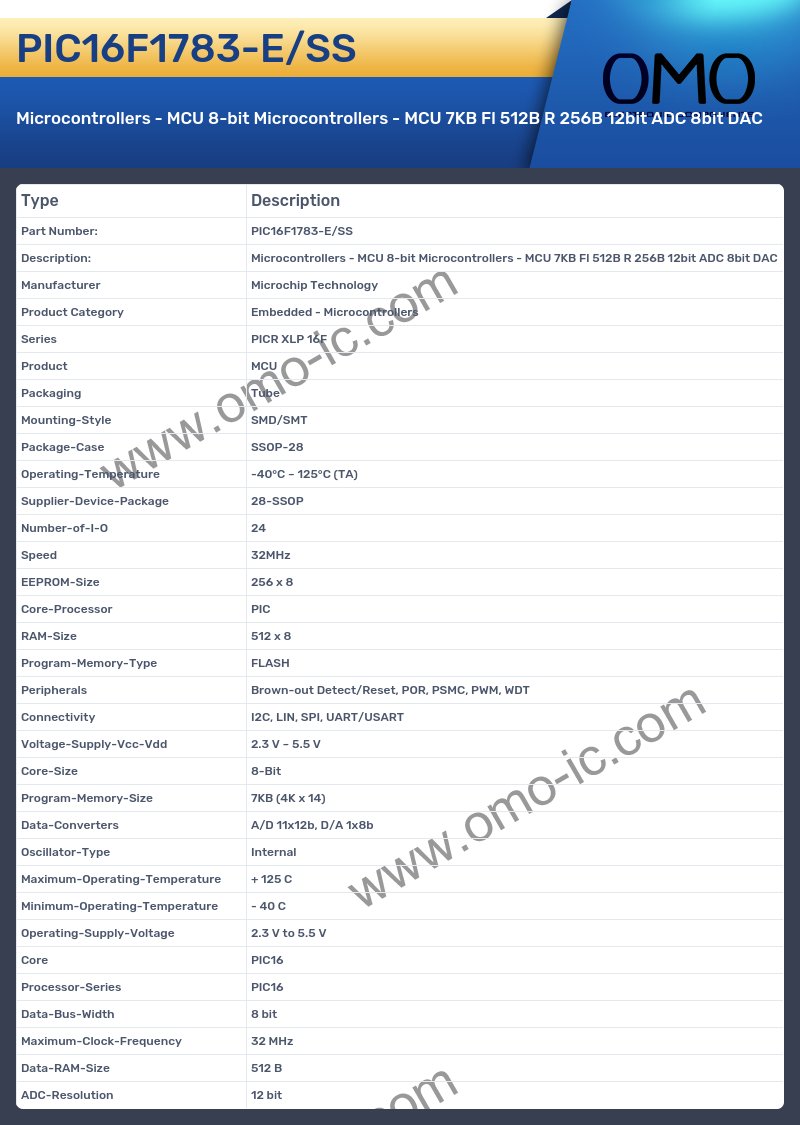

PIC16F1783-E/SS Image

PIC16F1783-E/SS Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR XLP 16F
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-SSOP
• Number-of-I-O 24
• Speed 32MHz
• EEPROM-Size 256 x 8
• Core-Processor PIC
• RAM-Size 512 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PSMC, PWM, WDT
• Connectivity I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2.3 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 7KB (4K x 14)
• Data-Converters A/D 11x12b, D/A 1x8b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.3 V to 5.5 V
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Maximum-Clock-Frequency 32 MHz
• Data-RAM-Size 512 B
• ADC-Resolution 12 bit
