PIC16F72-E/SS

PIC16F72-E/SS Overview

Product belongs to the PICR 16F series. This product is categorized as MCU Tube Alternate Packaging is the packaging method for this product Weight of 0.080001 oz SMD/SMT Mounting-Style SSOP-28 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 28-SSOP This product has 22 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH I2C, SPI interface Supply Voltage: 4 V ~ 5.5 V 8-Bit architecture External oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 5.5 V supply voltage for reliable performance. I2C SPI SSP interface type Processor Core: PIC16 This product is powered by the PIC16 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 2 V Maximum clock frequency of 20 MHz Number of ADC Channels: 5 This product has 22 I/O connections. This product has a 128 B data RAM size, providing ample storage for complex applications. The product has a 8 B data-ROM size. This product features 1 Timer number of timers and counters. This product features a high-precision 8 bit, ensuring accurate data conversion. The Flash Data-ROM-Type ensures non-volatile memory storage.

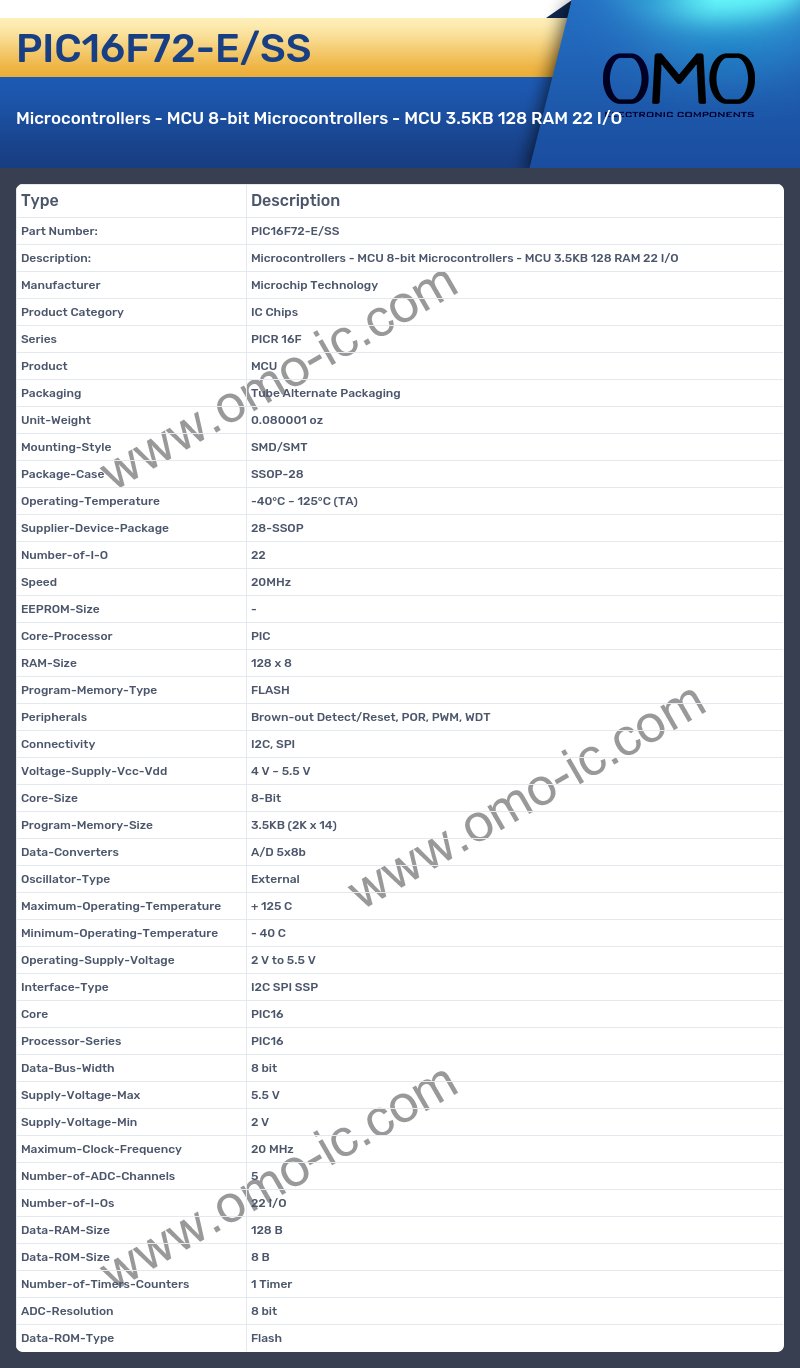

PIC16F72-E/SS Image

PIC16F72-E/SS Specifications

• Manufacturer Microchip Technology
• Product Category IC Chips
• Series PICR 16F
• Product MCU
• Packaging Tube Alternate Packaging
• Unit-Weight 0.080001 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-28
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 28-SSOP
• Number-of-I-O 22
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 128 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI
• Voltage-Supply-Vcc-Vdd 4 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 3.5KB (2K x 14)
• Data-Converters A/D 5x8b
• Oscillator-Type External
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 5.5 V
• Interface-Type I2C SPI SSP
• Core PIC16
• Processor-Series PIC16
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2 V
• Maximum-Clock-Frequency 20 MHz
• Number-of-ADC-Channels 5
• Number-of-I-Os 22 I/O
• Data-RAM-Size 128 B
• Data-ROM-Size 8 B
• Number-of-Timers-Counters 1 Timer
• ADC-Resolution 8 bit
• Data-ROM-Type Flash
