PIC16LF1503-E/MV

PIC16LF1503-E/MV Overview

Product belongs to the PICR 16F series. Tube is the packaging method for this product 16-UFQFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 16-UQFN (3x3) This product has 11 I/O ports for versatile connectivity. Operating frequency: 20MHz Program memory type: FLASH I2C, SPI interface Supply Voltage: 1.8 V ~ 3.6 V 8-Bit architecture Internal oscillator type

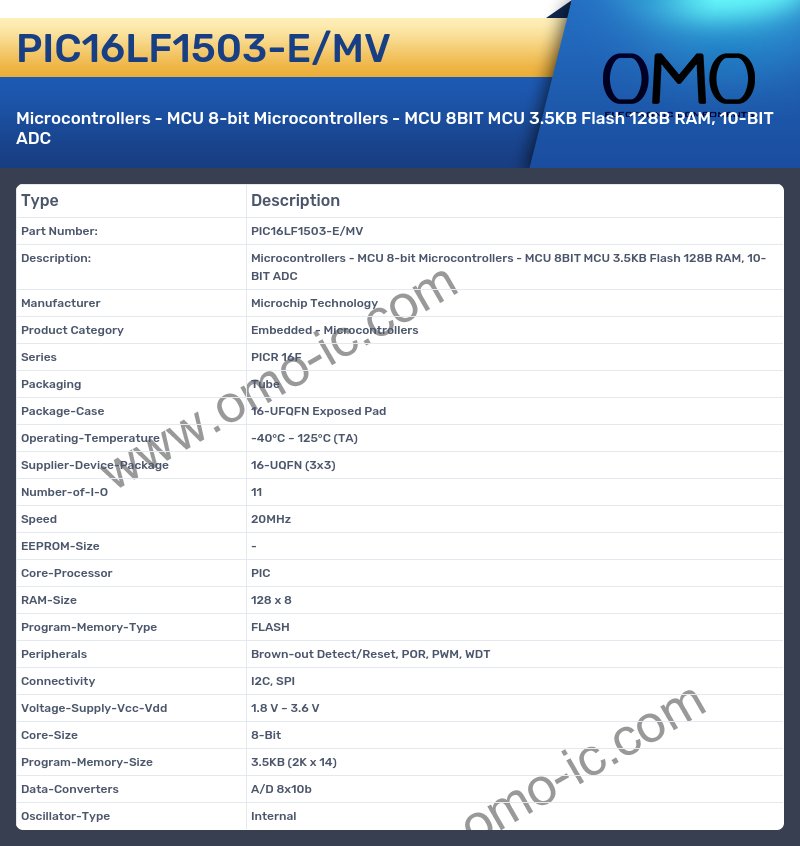

PIC16LF1503-E/MV Image

PIC16LF1503-E/MV Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 16F
• Packaging Tube
• Package-Case 16-UFQFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 16-UQFN (3x3)
• Number-of-I-O 11
• Speed 20MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 128 x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, SPI
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 3.6 V
• Core-Size 8-Bit
• Program-Memory-Size 3.5KB (2K x 14)
• Data-Converters A/D 8x10b
• Oscillator-Type Internal
