PIC18F46K80-E/PT

PIC18F46K80-E/PT Overview

Product belongs to the PICR XLP 18K series. This product is categorized as MCU Tray is the packaging method for this product SMD/SMT Mounting-Style TQFP-44 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 44-TQFP (10x10) This product has 35 I/O ports for versatile connectivity. Operating frequency: 64MHz Program memory type: FLASH ECAN, I2C, LIN, SPI, UART/USART interface Supply Voltage: 1.8 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 1.8 V to 5.5 V supply voltage for reliable performance. I2C SPI USART interface type Processor Core: PIC18 This product is powered by the PIC18 Processor-Series, providing high performance and efficiency. The 8 bit. Maximum clock frequency of 64 MHz This product has 35 I/O connections. This product has a 3.6 kB data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion. This product utilizes EEPROM, providing fast and efficient data storage.

PIC18F46K80-E/PT Image

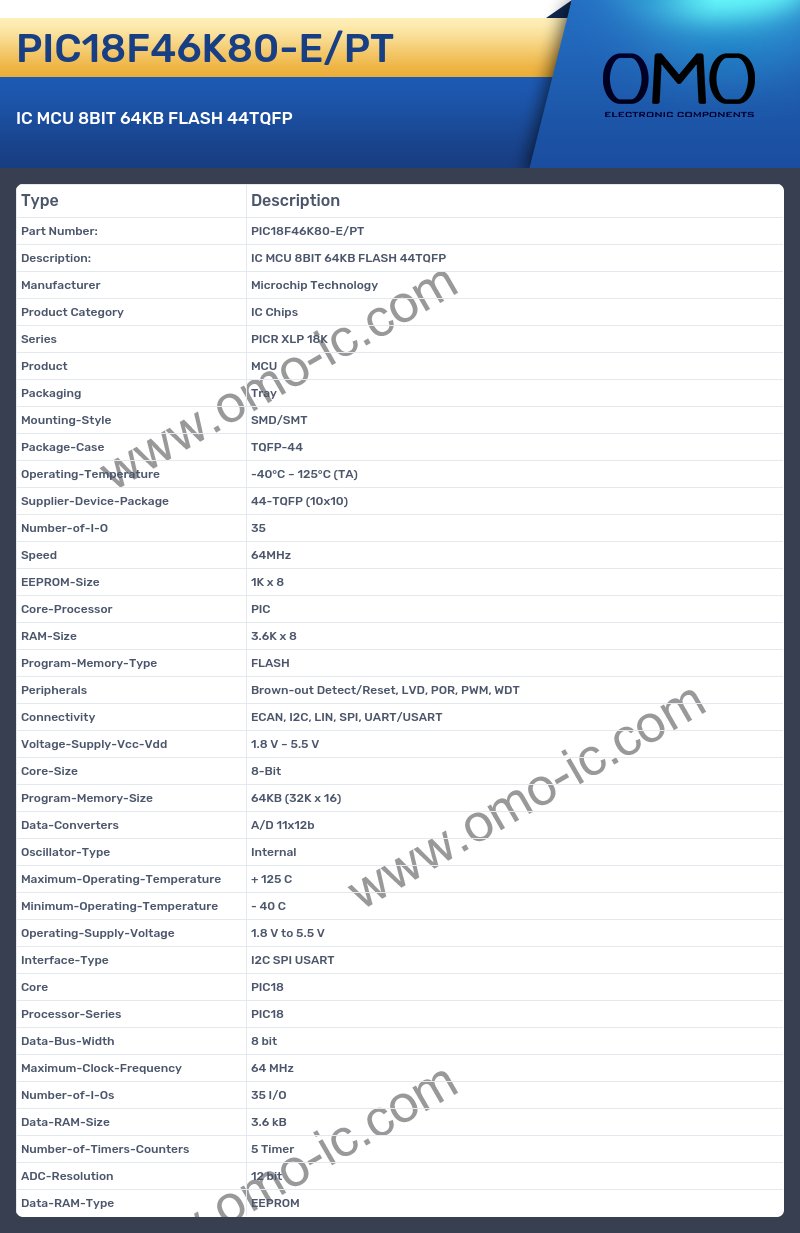

PIC18F46K80-E/PT Specifications

• Manufacturer Microchip Technology
• Product Category IC Chips
• Series PICR XLP 18K
• Product MCU
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case TQFP-44
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 44-TQFP (10x10)
• Number-of-I-O 35
• Speed 64MHz
• EEPROM-Size 1K x 8
• Core-Processor PIC
• RAM-Size 3.6K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
• Connectivity ECAN, I2C, LIN, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 1.8 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 64KB (32K x 16)
• Data-Converters A/D 11x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.8 V to 5.5 V
• Interface-Type I2C SPI USART
• Core PIC18
• Processor-Series PIC18
• Data-Bus-Width 8 bit
• Maximum-Clock-Frequency 64 MHz
• Number-of-I-Os 35 I/O
• Data-RAM-Size 3.6 kB
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 12 bit
• Data-RAM-Type EEPROM
