PIC24FJ16GA004-E/ML

PIC24FJ16GA004-E/ML Overview

Product belongs to the PICR 24F series. This product is categorized as MCU Tube is the packaging method for this product SMD/SMT Mounting-Style QFN-44 EP Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 44-QFN (8x8) This product has 35 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, PMP, SPI, UART/USART interface Supply Voltage: 2 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 2 V to 3.6 V supply voltage for reliable performance. I2C IrDA SPI UART interface type Processor Core: PIC This product is powered by the PIC24F Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 32 MHz Number of ADC Channels: 13 This product has 35 I/O connections. This product has a 4 kB data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

PIC24FJ16GA004-E/ML Image

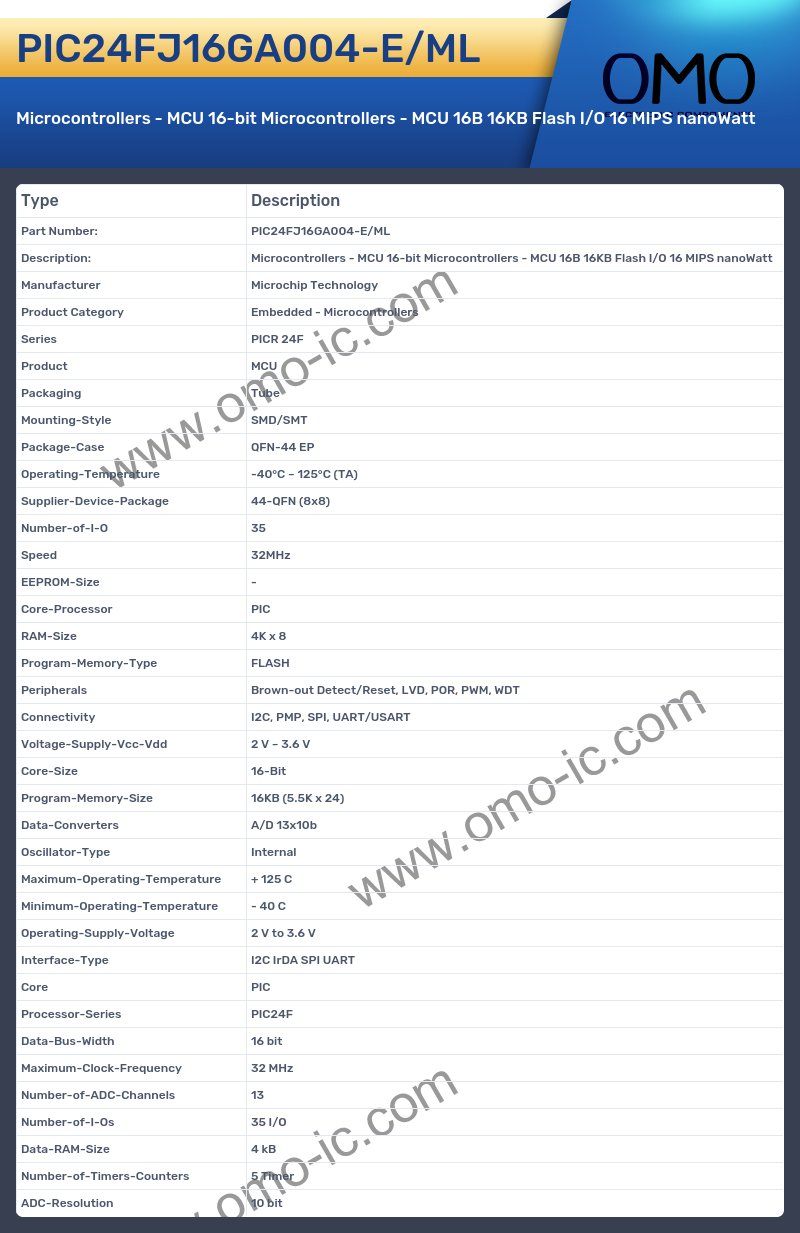

PIC24FJ16GA004-E/ML Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 24F
• Product MCU
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case QFN-44 EP
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 44-QFN (8x8)
• Number-of-I-O 35
• Speed 32MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 4K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, LVD, POR, PWM, WDT
• Connectivity I2C, PMP, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 16KB (5.5K x 24)
• Data-Converters A/D 13x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2 V to 3.6 V
• Interface-Type I2C IrDA SPI UART
• Core PIC
• Processor-Series PIC24F
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 32 MHz
• Number-of-ADC-Channels 13
• Number-of-I-Os 35 I/O
• Data-RAM-Size 4 kB
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit
