PIC24FJ256GA108-E/PT

PIC24FJ256GA108-E/PT Overview

Product belongs to the PICR 24F series. This product is categorized as MCU Tray is the packaging method for this product Weight of 0.018117 oz SMD/SMT Mounting-Style TQFP-80 Operational temperature range: -40°C ~ 125°C (TA) Supplier device package: 80-TQFP (12x12) This product has 69 I/O ports for versatile connectivity. Operating frequency: 32MHz Program memory type: FLASH I2C, PMP, SPI, UART/USART interface Supply Voltage: 2 V ~ 3.6 V 16-Bit architecture Internal oscillator type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. I2C SPI UART interface type Processor Core: PIC This product is powered by the PIC24F Processor-Series, providing high performance and efficiency. The 16 bit. Maximum clock frequency of 32 MHz Number of ADC Channels: 16 This product has 68 I/O connections. This product has a 16 kB data RAM size, providing ample storage for complex applications. This product features 5 Timer number of timers and counters. This product features a high-precision 10 bit, ensuring accurate data conversion.

PIC24FJ256GA108-E/PT Image

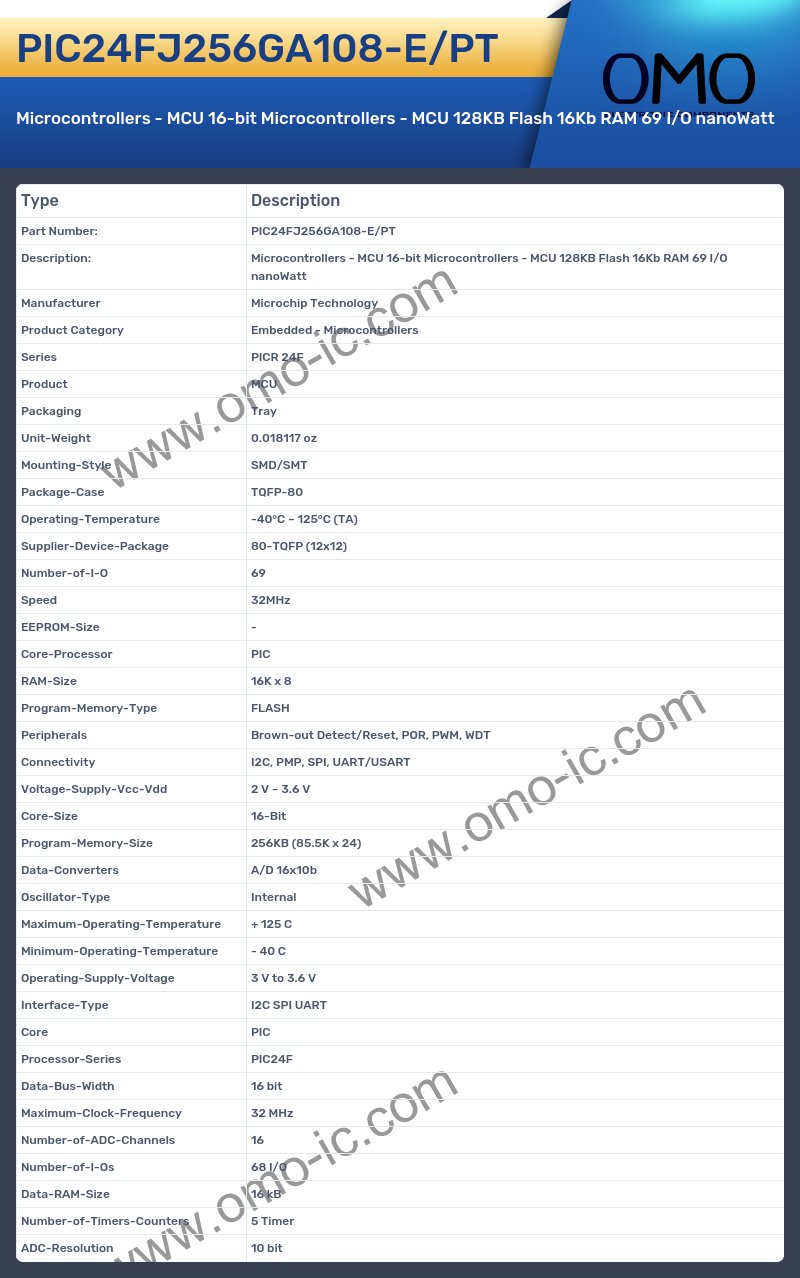

PIC24FJ256GA108-E/PT Specifications

• Manufacturer Microchip Technology
• Product Category Embedded - Microcontrollers
• Series PICR 24F
• Product MCU
• Packaging Tray
• Unit-Weight 0.018117 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-80
• Operating-Temperature -40°C ~ 125°C (TA)
• Supplier-Device-Package 80-TQFP (12x12)
• Number-of-I-O 69
• Speed 32MHz
• EEPROM-Size -
• Core-Processor PIC
• RAM-Size 16K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, POR, PWM, WDT
• Connectivity I2C, PMP, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 2 V ~ 3.6 V
• Core-Size 16-Bit
• Program-Memory-Size 256KB (85.5K x 24)
• Data-Converters A/D 16x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Interface-Type I2C SPI UART
• Core PIC
• Processor-Series PIC24F
• Data-Bus-Width 16 bit
• Maximum-Clock-Frequency 32 MHz
• Number-of-ADC-Channels 16
• Number-of-I-Os 68 I/O
• Data-RAM-Size 16 kB
• Number-of-Timers-Counters 5 Timer
• ADC-Resolution 10 bit
