PM6600

PM6600 Overview

Product belongs to the - series. Type: DC DC Regulator Tube Alternate Packaging is the packaging method for this product 24-VFQFN Exposed Pad This product's 200kHz ~ 1MHz range is 0Hz to 2.2GHz. Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile Backlight applications for maximum usability Supplier device package: 24-VFQFPN (4x4) Number-of-Outputs: 6 Current-Output-Channel is 32mA This product has Yes. Topology: Step-Up (Boost) feedback The maximum voltage supply is 28V. The minimum 4.7V required for voltage supply. Output voltage: 36V Dimming control is done through PWM communication.

PM6600 Image

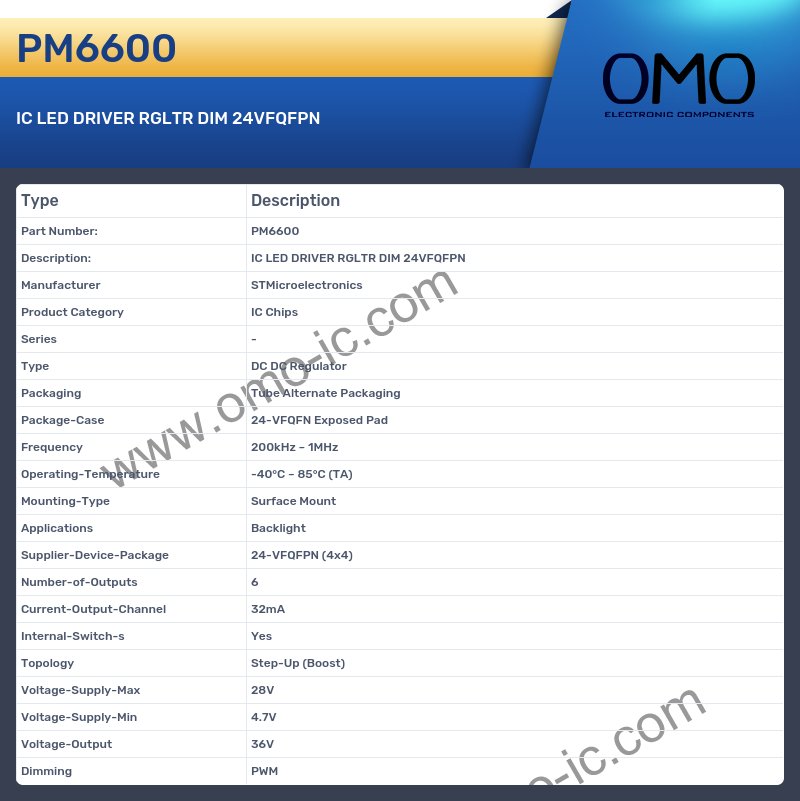

PM6600 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series -
• Type DC DC Regulator
• Packaging Tube Alternate Packaging
• Package-Case 24-VFQFN Exposed Pad
• Frequency 200kHz ~ 1MHz
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications Backlight
• Supplier-Device-Package 24-VFQFPN (4x4)
• Number-of-Outputs 6
• Current-Output-Channel 32mA
• Internal-Switch-s Yes
• Topology Step-Up (Boost)
• Voltage-Supply-Max 28V
• Voltage-Supply-Min 4.7V
• Voltage-Output 36V
• Dimming PWM
