PT4504A Overview

Product belongs to the Excalibur PT4500 series. Type: Isolated Module Tray is the packaging method for this product 12-SIP Module Operational temperature range: -40°C ~ 85°C Through Hole, Right Angle mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 1.3A of 50mA for efficient power management. The minimum input voltage is 18V. The 40V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 15V output voltage

PT4504A Image

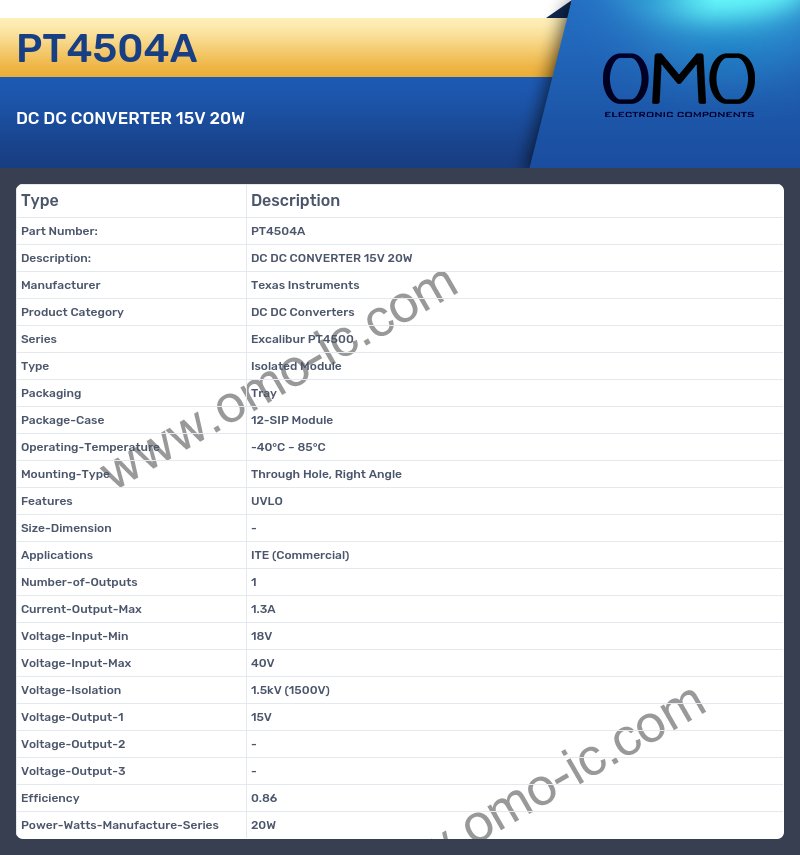

PT4504A Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4500
• Type Isolated Module
• Packaging Tray
• Package-Case 12-SIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole, Right Angle
• Features UVLO
• Size-Dimension -
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 1.3A
• Voltage-Input-Min 18V
• Voltage-Input-Max 40V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 15V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.86
• Power-Watts-Manufacture-Series 20W
