PT4686A Overview

Product belongs to the Excalibur PT4680 series. Type: Isolated Module Tray is the packaging method for this product 26-SIP Module Operational temperature range: -40°C ~ 85°C Through Hole, Right Angle mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 2 Our product delivers a 15A, 15A of 50mA for efficient power management. The minimum input voltage is 18V. The 36V. This product is designed with 1.5kV (1500V) voltage isolation for maximum safety and reliability. 2.5V output voltage

PT4686A Image

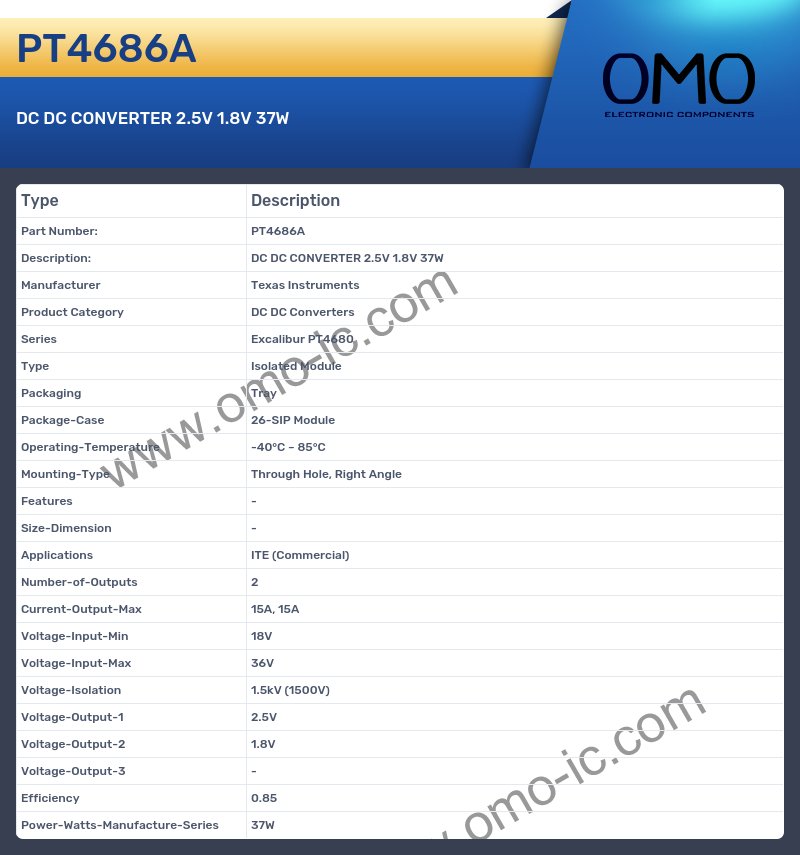

PT4686A Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series Excalibur PT4680
• Type Isolated Module
• Packaging Tray
• Package-Case 26-SIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole, Right Angle
• Features -
• Size-Dimension -
• Applications ITE (Commercial)
• Number-of-Outputs 2
• Current-Output-Max 15A, 15A
• Voltage-Input-Min 18V
• Voltage-Input-Max 36V
• Voltage-Isolation 1.5kV (1500V)
• Voltage-Output-1 2.5V
• Voltage-Output-2 1.8V
• Voltage-Output-3 -
• Efficiency 0.85
• Power-Watts-Manufacture-Series 37W
