PT6523B Overview

Product belongs to the PT6520 series. Type: Non-Isolated PoL Module Tray is the packaging method for this product 14-SMD Module Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 8A of 50mA for efficient power management. The minimum input voltage is 3.1V. The 5.5V. This product is designed with - voltage isolation for maximum safety and reliability. 2.5V output voltage

PT6523B Image

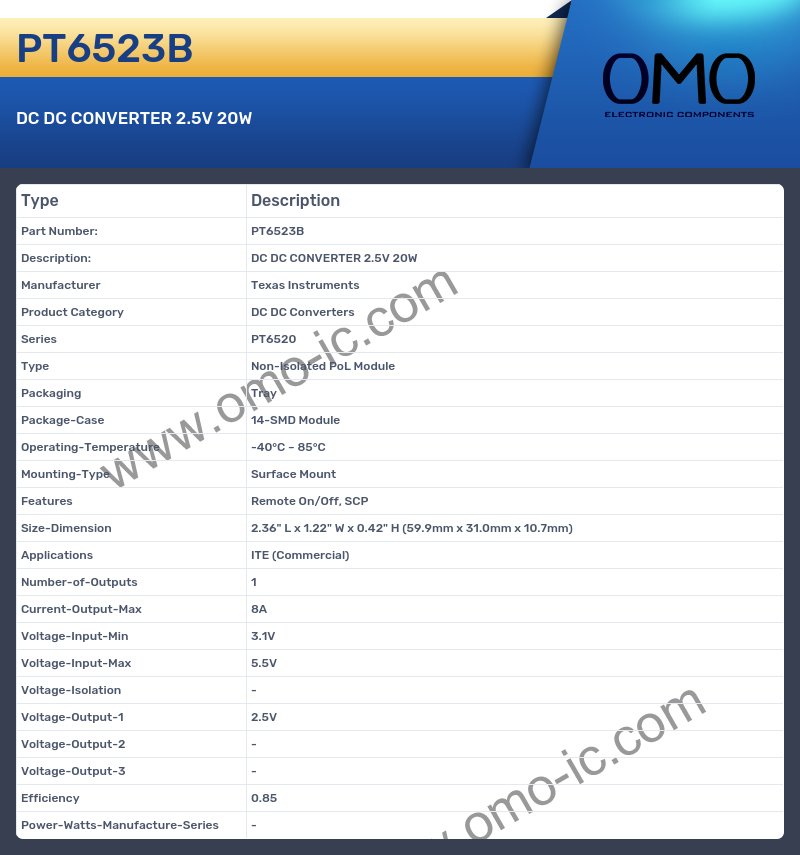

PT6523B Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PT6520
• Type Non-Isolated PoL Module
• Packaging Tray
• Package-Case 14-SMD Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features Remote On/Off, SCP
• Size-Dimension 2.36" L x 1.22" W x 0.42" H (59.9mm x 31.0mm x 10.7mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 8A
• Voltage-Input-Min 3.1V
• Voltage-Input-Max 5.5V
• Voltage-Isolation -
• Voltage-Output-1 2.5V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.85
• Power-Watts-Manufacture-Series -
