PTH08080WAD

PTH08080WAD Overview

Product belongs to the PTH08080W series. This product is categorized as Non-Isolated / POL Type: Non-Isolated PoL Module Tray is the packaging method for this product Through Hole Mounting-Style Trade name: SWIFT. Wide - 40 C to + 85 C operating temperature range for diverse applications 5-DIP Module Operational temperature range: -40°C ~ 85°C Through Hole mounting type Versatile ITE (Commercial) applications for maximum usability Number-of-Outputs: 1 Our product delivers a 2.25A of 50mA for efficient power management. The minimum input voltage is 4.5V. The 18V. This product is designed with - voltage isolation for maximum safety and reliability. 0.9 ~ 5.5 V output voltage Input Voltage Range: 4.5 V to 18 V 0.9 V to 5.5 V output voltage for channel 1 Current output of channel 1 is 2.25 A . Through Hole Module package-case-size

PTH08080WAD Image

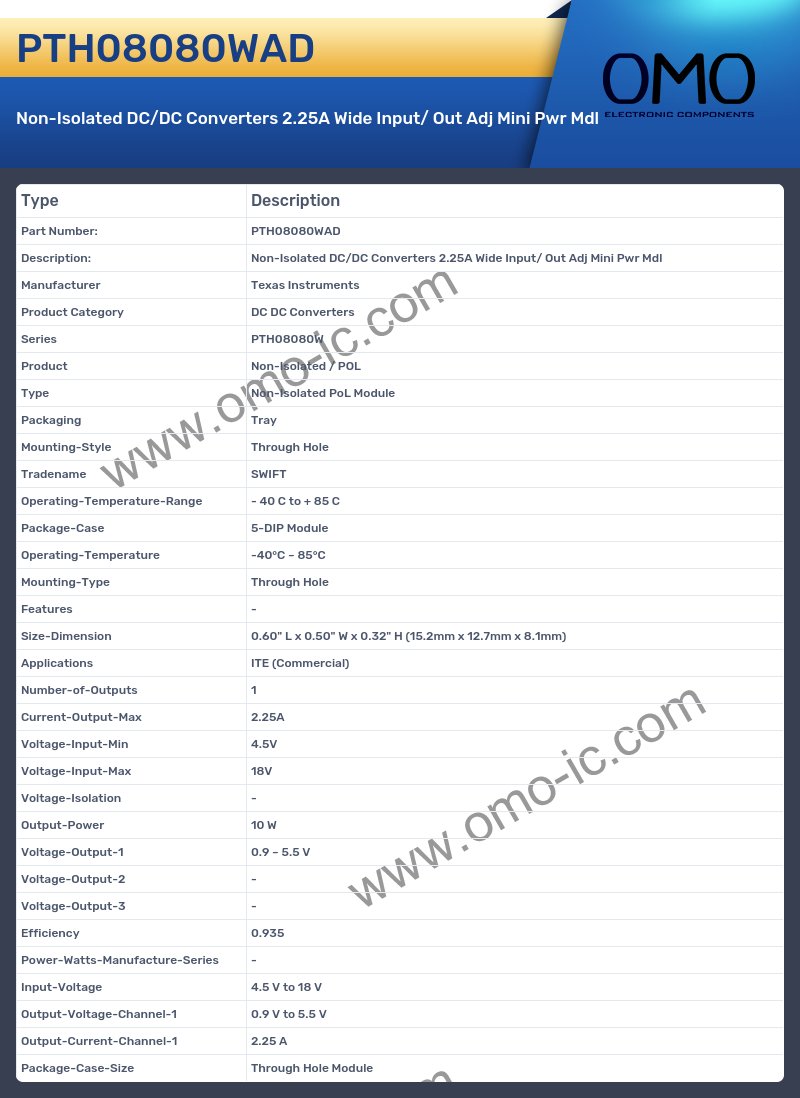

PTH08080WAD Specifications

• Manufacturer Texas Instruments
• Product Category DC DC Converters
• Series PTH08080W
• Product Non-Isolated / POL
• Type Non-Isolated PoL Module
• Packaging Tray
• Mounting-Style Through Hole
• Tradename SWIFT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case 5-DIP Module
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Features -
• Size-Dimension 0.60" L x 0.50" W x 0.32" H (15.2mm x 12.7mm x 8.1mm)
• Applications ITE (Commercial)
• Number-of-Outputs 1
• Current-Output-Max 2.25A
• Voltage-Input-Min 4.5V
• Voltage-Input-Max 18V
• Voltage-Isolation -
• Output-Power 10 W
• Voltage-Output-1 0.9 ~ 5.5 V
• Voltage-Output-2 -
• Voltage-Output-3 -
• Efficiency 0.935
• Power-Watts-Manufacture-Series -
• Input-Voltage 4.5 V to 18 V
• Output-Voltage-Channel-1 0.9 V to 5.5 V
• Output-Current-Channel-1 2.25 A
• Package-Case-Size Through Hole Module
