| Mfr. #: | SG3524P013TR |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IC REG CTLR FLYBK/PSH-PLL 16SOIC |
| 生命周期: | 制造商新产品。 |
| 数据表: | SG3524P013TR 数据表 |
Product belongs to the SG3524 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 Operational temperature range: 0°C ~ 70°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-SO Number-of-Outputs: 2 Topology: Flyback, Push-Pull feedback Supply Voltage: 8 V ~ 40 V This product features 'Frequency-Switching' at 300kHz for optimal performance. The Control-Features include Enable function. The Positive. Output-Phases: 1 Maximum duty cycle of 45 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: 18 V Output current: 100 mA Switching frequency is 300 kHz This product has a 100 ns of 16 ns. This product has a 200 ns of 16 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

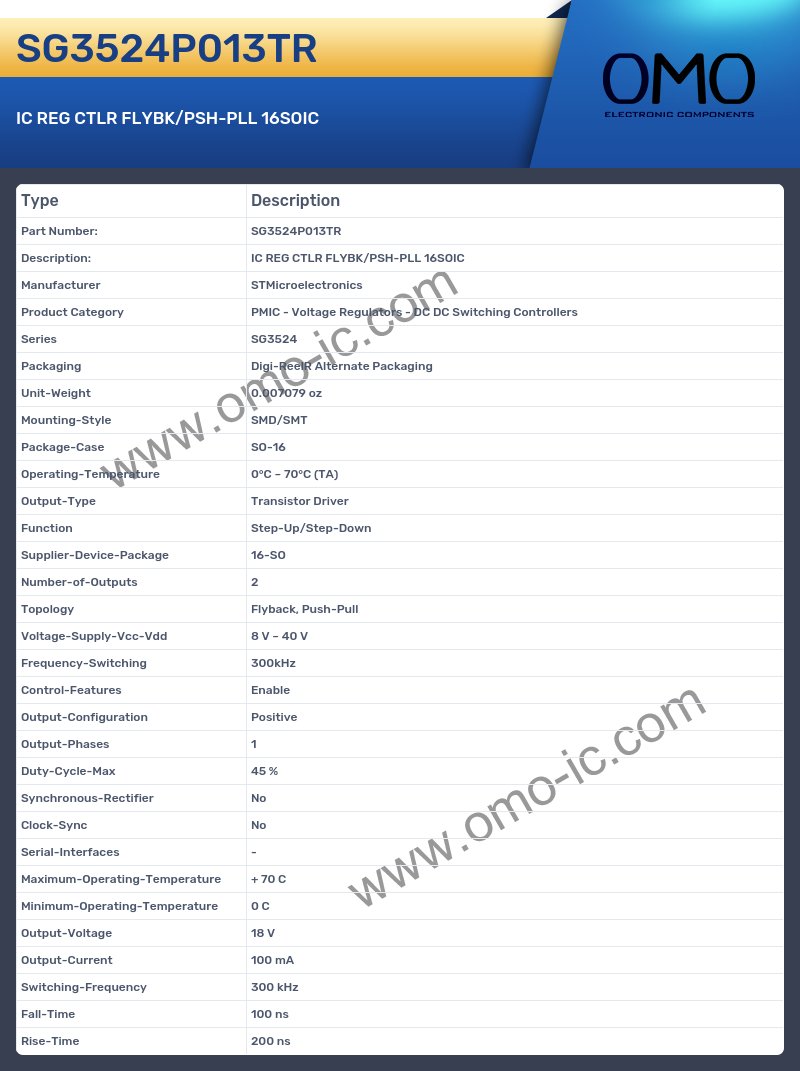

SG3524P013TR Specifications
