SM15T200A

SM15T200A Overview

Product belongs to the SM15T, TransZorbR series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product The SM15T200A-E3/9AT is listed as a Part-Aliase. Weight of 0.009065 oz SMD/SMT Mounting-Style This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: TransZorb. Wide - 65 C to + 150 C operating temperature range for diverse applications 7.11 mm length of the product The 6.22(Max) mm is at most 7.6 mm. DO-214AB, SMC Operational temperature range: -65°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Supplier device package: DO-214AB (SMCJ) Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 171V. The Voltage-Breakdown-Min is 190V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 1.5 kW Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Breakdown-Voltage: 190 V Clamping-Voltage: 353 V 200 A Peak Surge Current 171 V working voltage Polarity: Unidirectional

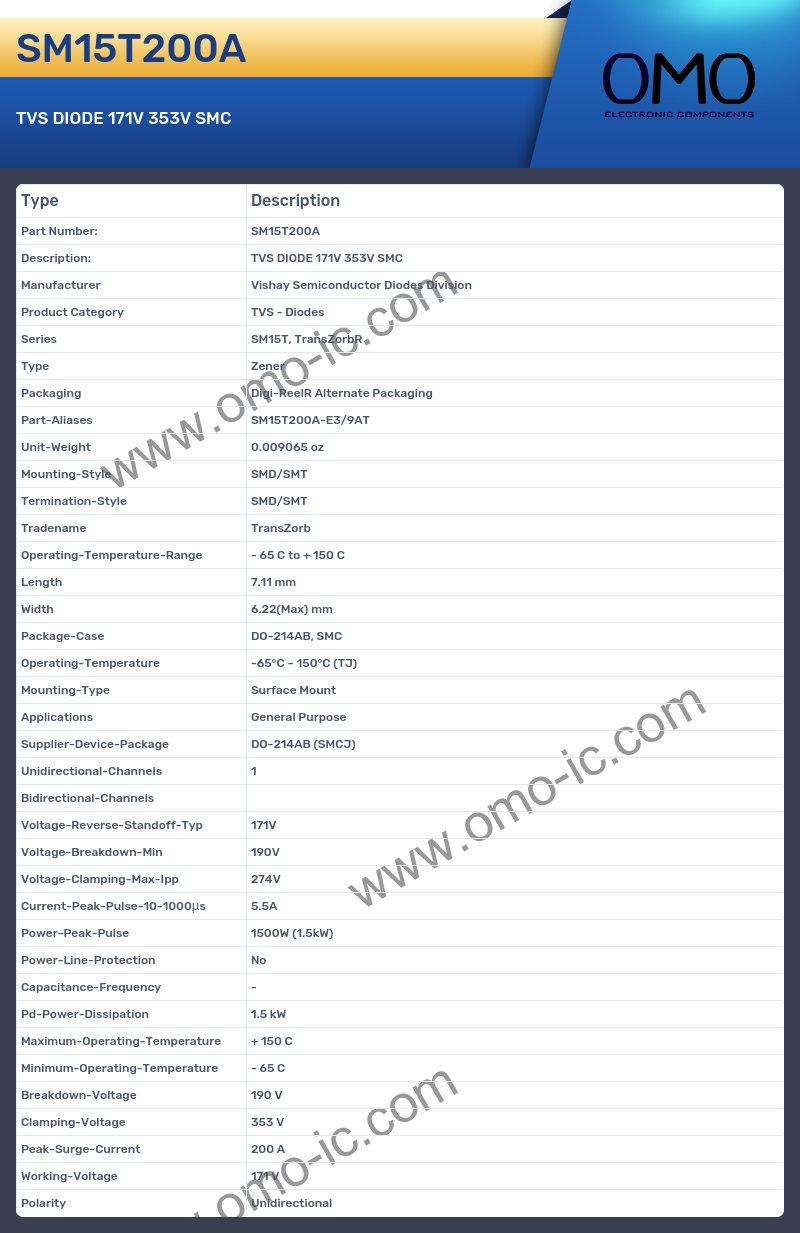

SM15T200A Image

SM15T200A Specifications

• Manufacturer Vishay Semiconductor Diodes Division
• Product Category TVS - Diodes
• Series SM15T, TransZorbR
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Part-Aliases SM15T200A-E3/9AT
• Unit-Weight 0.009065 oz
• Mounting-Style SMD/SMT
• Termination-Style SMD/SMT
• Tradename TransZorb
• Operating-Temperature-Range - 65 C to + 150 C
• Length 7.11 mm
• Width 6.22(Max) mm
• Package-Case DO-214AB, SMC
• Operating-Temperature -65°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Applications General Purpose
• Supplier-Device-Package DO-214AB (SMCJ)
• Unidirectional-Channels 1
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 171V
• Voltage-Breakdown-Min 190V
• Voltage-Clamping-Max-Ipp 274V
• Current-Peak-Pulse-10-1000μs 5.5A
• Power-Peak-Pulse 1500W (1.5kW)
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 1.5 kW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 190 V
• Clamping-Voltage 353 V
• Peak-Surge-Current 200 A
• Working-Voltage 171 V
• Polarity Unidirectional
