SN74ABT833DW

SN74ABT833DW Overview

Product belongs to the 74ABT series. This product is categorized as Parity Transceiver Tube is the packaging method for this product Weight of 0.022025 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: 3-State Product function is 8-Bit to 9-Bit Parity Bus Registered Transceiver with Parity Checker. Number of channels: 8 Voltage Supply Range: 4.5 V ~ 5.5 V Supplier device package: 24-SOIC 1 is 8. 1 element Transceiver, Inverting logic type 8 bits per element Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Polarity: Non-Inverting Maximum supply current: 38 mA Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V ABT logic type 5.3 ns is 23 microseconds. TTL is the output level. This product has an TTL for easy integration with other devices. High-Level-Output-Current of - 32 mA 64 mA low-level output current

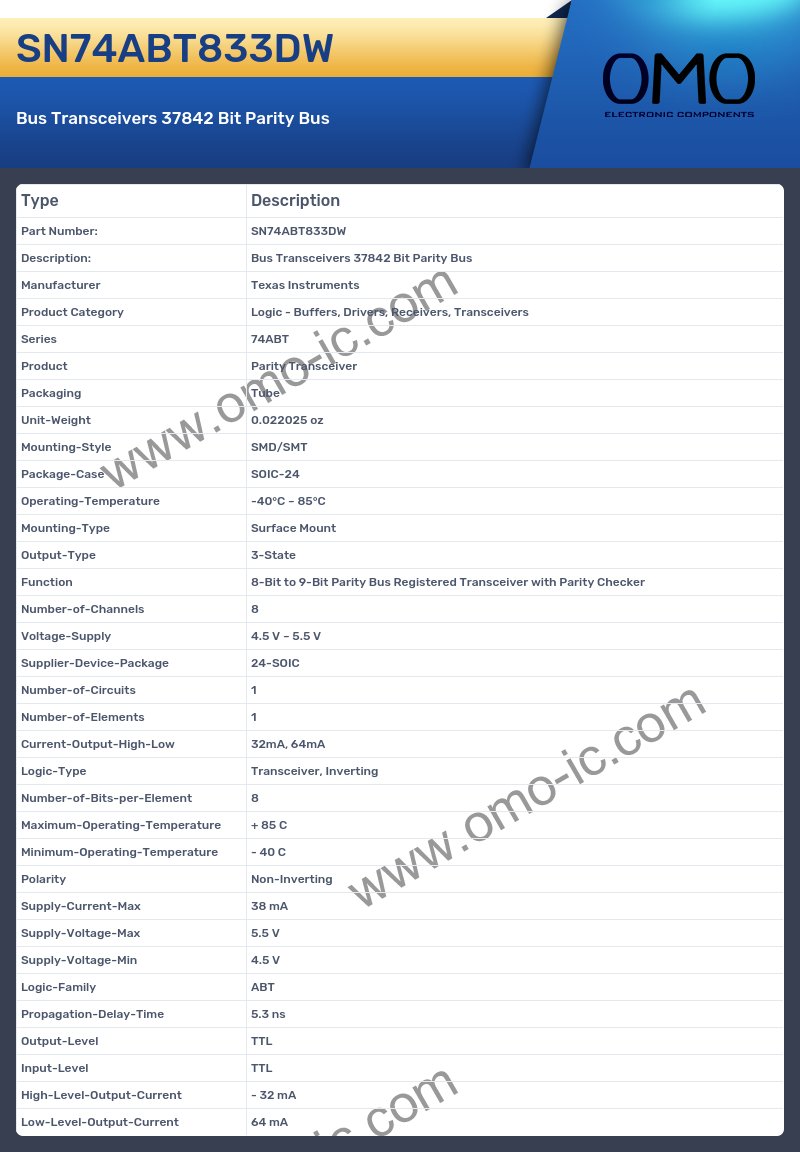

SN74ABT833DW Image

SN74ABT833DW Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Buffers, Drivers, Receivers, Transceivers
• Series 74ABT
• Product Parity Transceiver
• Packaging Tube
• Unit-Weight 0.022025 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type 3-State
• Function 8-Bit to 9-Bit Parity Bus Registered Transceiver with Parity Checker
• Number-of-Channels 8
• Voltage-Supply 4.5 V ~ 5.5 V
• Supplier-Device-Package 24-SOIC
• Number-of-Circuits 1
• Number-of-Elements 1
• Current-Output-High-Low 32mA, 64mA
• Logic-Type Transceiver, Inverting
• Number-of-Bits-per-Element 8
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Polarity Non-Inverting
• Supply-Current-Max 38 mA
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Logic-Family ABT
• Propagation-Delay-Time 5.3 ns
• Output-Level TTL
• Input-Level TTL
• High-Level-Output-Current - 32 mA
• Low-Level-Output-Current 64 mA
