SN74AC08DBR

SN74AC08DBR Overview

Product belongs to the 74AC series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications SSOP-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Voltage Supply Range: 2 V ~ 6 V Supplier device package: 14-SSOP 4 is 8. 4 Gate is the number of gates included in this product. 2μA maximum quiescent current. AND Gate logic type 0.9 V ~ 1.65 V is a Logic-Level-Low; 2.1 V ~ 3.85 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 6 V Minimum supply voltage is 2 V AC logic type 8.5 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 24 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output AND logic function

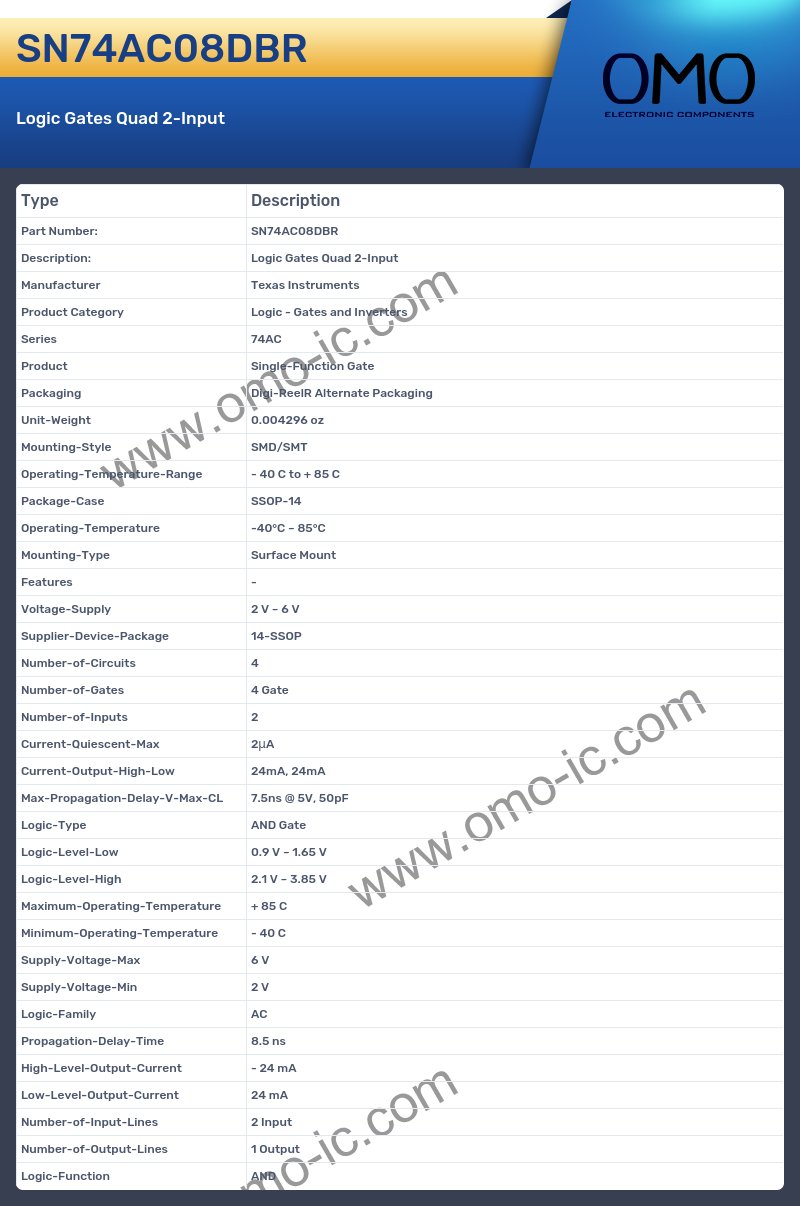

SN74AC08DBR Image

SN74AC08DBR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AC
• Product Single-Function Gate
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004296 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case SSOP-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 2 V ~ 6 V
• Supplier-Device-Package 14-SSOP
• Number-of-Circuits 4
• Number-of-Gates 4 Gate
• Number-of-Inputs 2
• Current-Quiescent-Max 2μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 7.5ns @ 5V, 50pF
• Logic-Type AND Gate
• Logic-Level-Low 0.9 V ~ 1.65 V
• Logic-Level-High 2.1 V ~ 3.85 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2 V
• Logic-Family AC
• Propagation-Delay-Time 8.5 ns
• High-Level-Output-Current - 24 mA
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 2 Input
• Number-of-Output-Lines 1 Output
• Logic-Function AND
