| Mfr. #: | SN74LS221DR |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | Monostable Multivibrator Dual Mono |
| 生命周期: | 制造商新产品。 |
| 数据表: | SN74LS221DR 数据表 |
Product belongs to the 74LS series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 16-SOIC Monostable logic type No. 2 Independent Circuit 45ns Propagation-Delay Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product operates at a 5 V supply voltage for reliable performance. Maximum supply current: 4.7 mA Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 80 ns is 23 microseconds. High-Level-Output-Current of - 0.4 mA 8 mA low-level output current 2 Elements-per-Chip
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

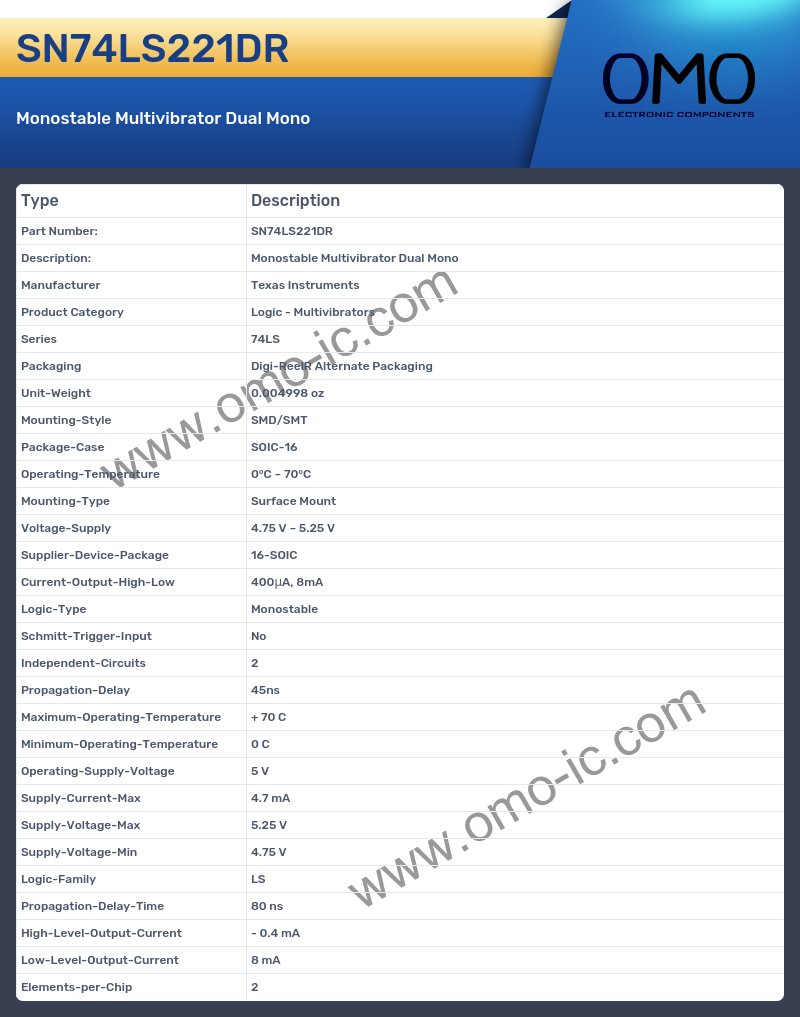

SN74LS221DR Specifications
