| Mfr. #: | SN74LS38DBR |
|---|---|
| 制造商: | Texas Instruments |
| 描述: | Logic Gates Quad 2input Positive NAND buffers |
| 生命周期: | 制造商新产品。 |
| 数据表: | SN74LS38DBR 数据表 |
Product belongs to the 74LS series. This product is categorized as Single-Function Gate Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004296 oz SMD/SMT Mounting-Style SSOP-14 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 14-SSOP 4 is 8. 4 Gate is the number of gates included in this product. 2mA maximum quiescent current. NAND Gate logic type 0.8V is a Logic-Level-Low; 2V is the Logic-Level-High Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V LS logic type 32 ns is 23 microseconds. High-Level-Output-Current of - 24 mA 0 mA low-level output current Number-of-Input-Lines: 2 Input Number-of-Output-Lines: 1 Output NAND logic function
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

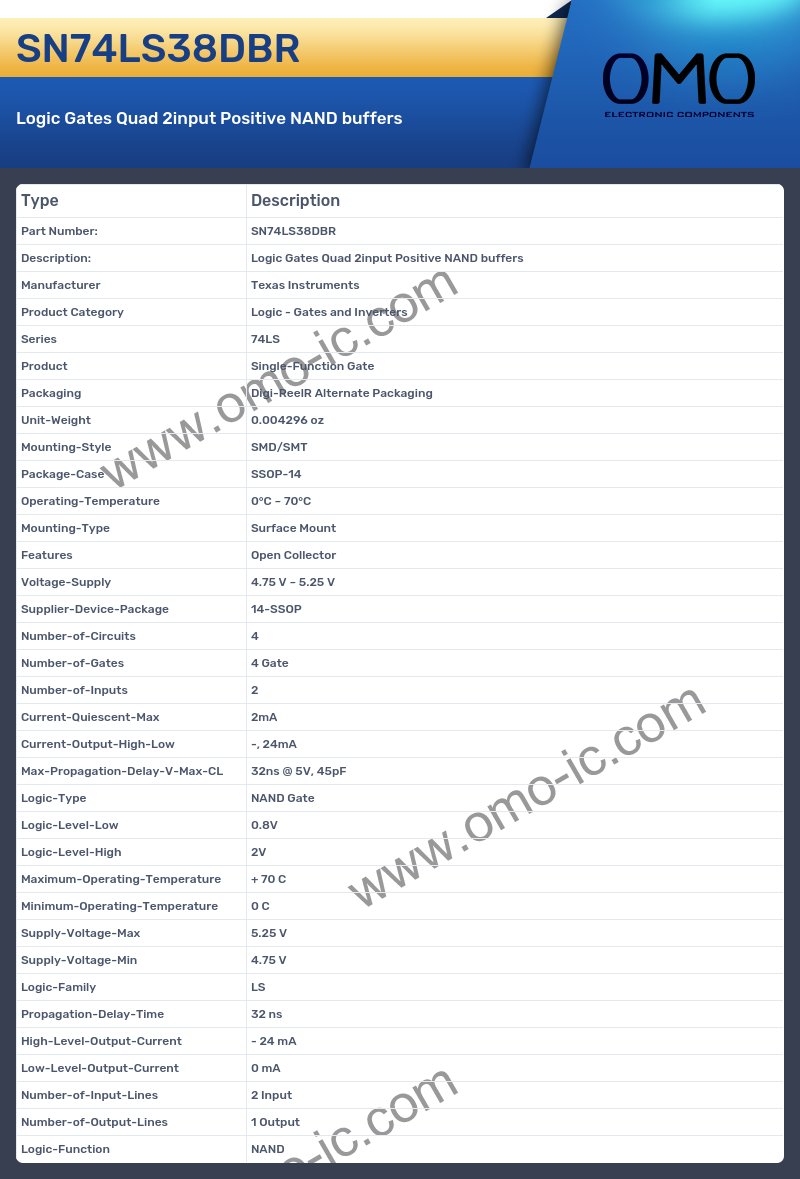

SN74LS38DBR Specifications
