SN74LVC06AMDREP

SN74LVC06AMDREP Overview

Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 6 Channel Voltage Supply Range: 1.65 V ~ 3.6 V Supplier device package: 14-SOIC 6 is 8. 1μA maximum quiescent current. Inverter logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Power-off control: 500 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Polarity: Inverting 40 uA is 92 nA. This product is also known as V62/06661-01XE and can be referred to by either part number. Maximum supply voltage of 3.6 V Minimum supply voltage is 1.65 V LVC logic type 2.2 ns at 3.3 V is 23 microseconds. 24 mA low-level output current Number-of-Input-Lines: 6 Input Number-of-Output-Lines: 6 Output

SN74LVC06AMDREP Image

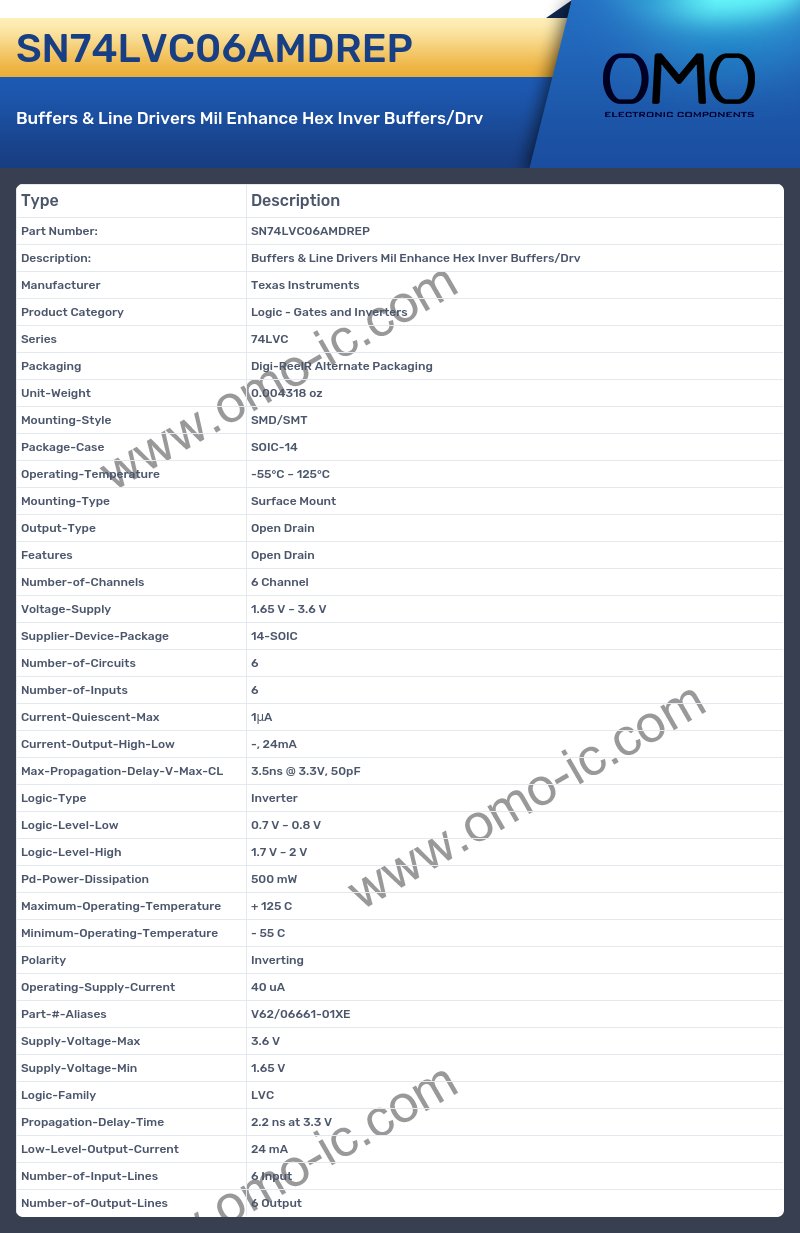

SN74LVC06AMDREP Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Features Open Drain
• Number-of-Channels 6 Channel
• Voltage-Supply 1.65 V ~ 3.6 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 1μA
• Current-Output-High-Low -, 24mA
• Max-Propagation-Delay-V-Max-CL 3.5ns @ 3.3V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Polarity Inverting
• Operating-Supply-Current 40 uA
• Part-#-Aliases V62/06661-01XE
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 1.65 V
• Logic-Family LVC
• Propagation-Delay-Time 2.2 ns at 3.3 V
• Low-Level-Output-Current 24 mA
• Number-of-Input-Lines 6 Input
• Number-of-Output-Lines 6 Output
