SN74LVC2T45DCTR

SN74LVC2T45DCTR Overview

Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Tri-State, Non-Inverted Supplier device package: SM8 1 is 8. CMOS logic type This product uses Voltage Level as the translator type This product's Bidirectional 2 Channels The product is designed to operate at 1.65 V ~ 5.5 V. The Voltage-VCCB is set at 1.65 V ~ 5.5 V. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V 74LV logic type 17.7 ns is 23 microseconds.

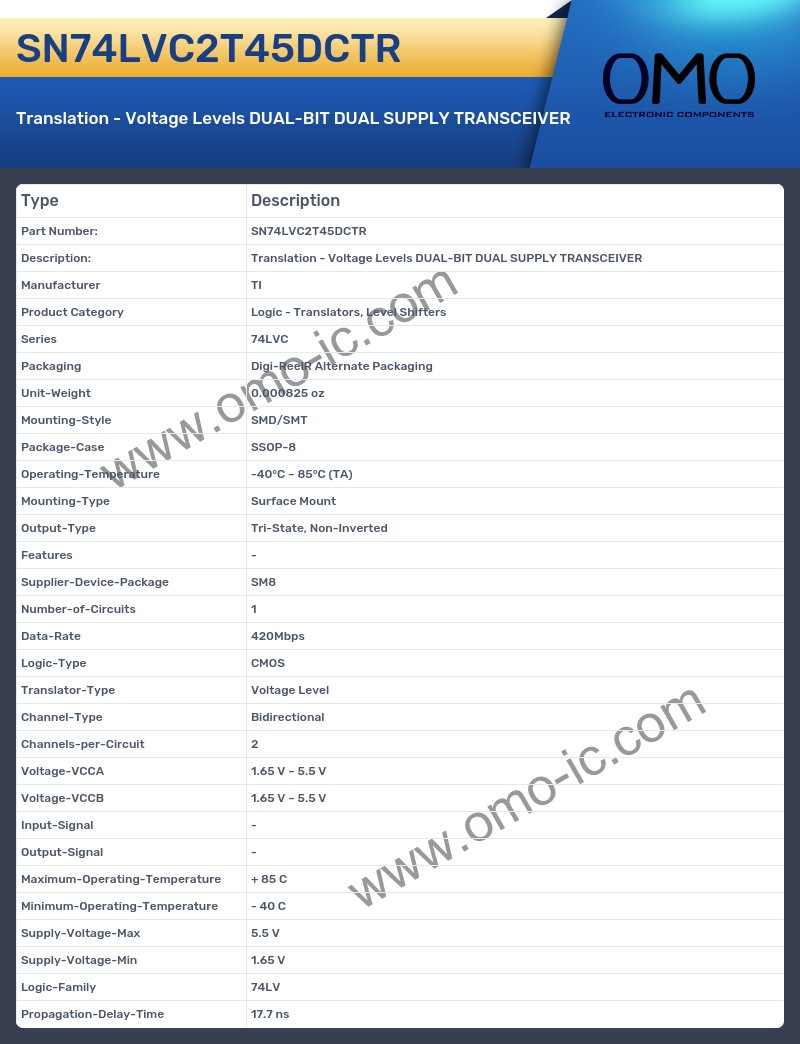

SN74LVC2T45DCTR Image

SN74LVC2T45DCTR Specifications

• Manufacturer TI
• Product Category Logic - Translators, Level Shifters
• Series 74LVC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000825 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Tri-State, Non-Inverted
• Features -
• Supplier-Device-Package SM8
• Number-of-Circuits 1
• Data-Rate 420Mbps
• Logic-Type CMOS
• Translator-Type Voltage Level
• Channel-Type Bidirectional
• Channels-per-Circuit 2
• Voltage-VCCA 1.65 V ~ 5.5 V
• Voltage-VCCB 1.65 V ~ 5.5 V
• Input-Signal -
• Output-Signal -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family 74LV
• Propagation-Delay-Time 17.7 ns
