SN74LVC3G06DCTR

SN74LVC3G06DCTR Overview

Product belongs to the 74LVC series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.000825 oz SMD/SMT Mounting-Style SSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Open Drain Number of channels: 3 Voltage Supply Range: 1.65 V ~ 5.5 V Supplier device package: SM8 3 is 8. 10μA maximum quiescent current. Inverter logic type 0.7 V ~ 0.8 V is a Logic-Level-Low; 1.7 V ~ 2 V is the Logic-Level-High Maximum operating temperature of + 85 C Minimum operating temperature: - 45 C Polarity: Inverting Maximum supply voltage of 5.5 V Minimum supply voltage is 1.65 V LVC logic type 3.4 ns at 3.3 V 2.9 ns at 5 V is 23 microseconds. 32 mA low-level output current Number-of-Input-Lines: 3 Input Number-of-Output-Lines: 3 Output

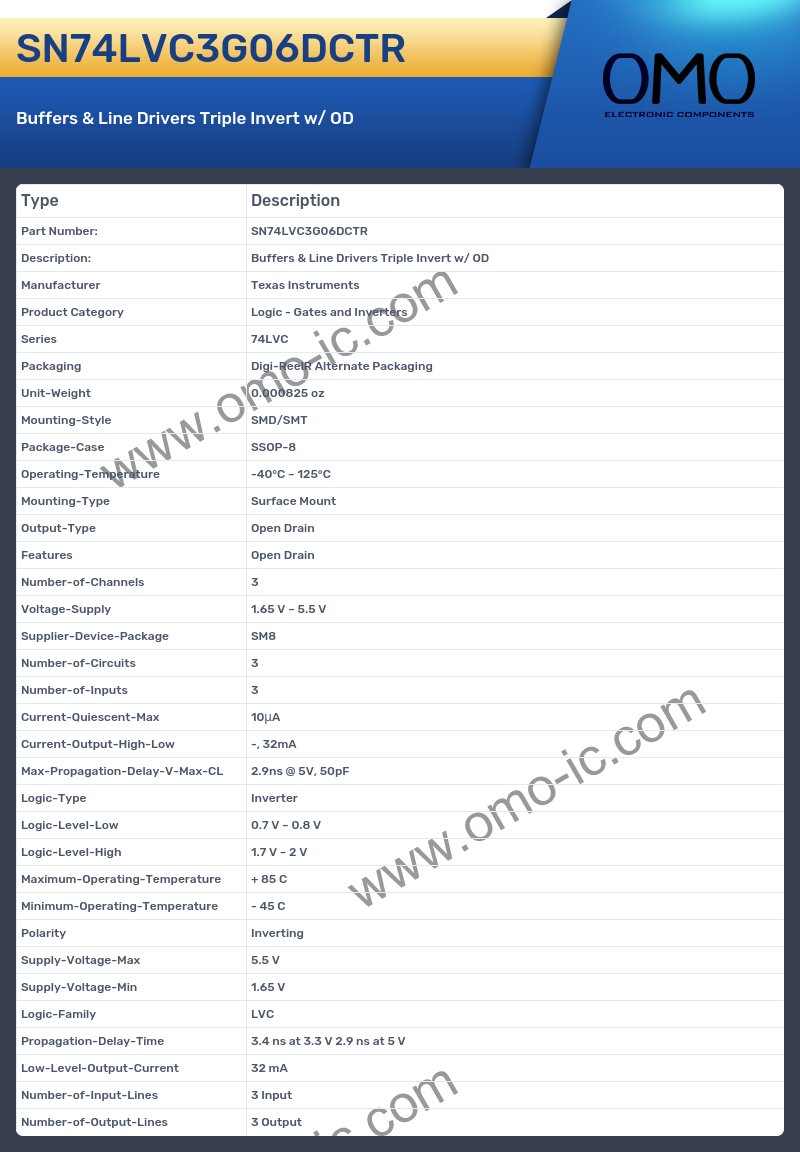

SN74LVC3G06DCTR Image

SN74LVC3G06DCTR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74LVC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.000825 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Open Drain
• Features Open Drain
• Number-of-Channels 3
• Voltage-Supply 1.65 V ~ 5.5 V
• Supplier-Device-Package SM8
• Number-of-Circuits 3
• Number-of-Inputs 3
• Current-Quiescent-Max 10μA
• Current-Output-High-Low -, 32mA
• Max-Propagation-Delay-V-Max-CL 2.9ns @ 5V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 0.7 V ~ 0.8 V
• Logic-Level-High 1.7 V ~ 2 V
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 45 C
• Polarity Inverting
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 1.65 V
• Logic-Family LVC
• Propagation-Delay-Time 3.4 ns at 3.3 V 2.9 ns at 5 V
• Low-Level-Output-Current 32 mA
• Number-of-Input-Lines 3 Input
• Number-of-Output-Lines 3 Output
