SN74S00D

SN74S00D Overview

RoHS compliant with Details This product is categorized as Single-Function Gate The NAND logic function is utilized in this product. 74S Logic Family 4 Gate Gates This product features 2 Input input line. The product features 1 Output output lines for versatile connectivity. A - 1 mA of -7.8 mA Output Current of low level is 20 mA. Propagation Delay Time: 5 ns Maximum supply voltage of 5.25 V The minimum supply voltage is 4.75 V Maximum Operating Temperature: + 70 C Input bias current of SMD/SMT Package type is SOIC-14 Tube is the packaging method for this product The product uses 2-Input NAND logic, ensuring low power consumption. 0 C minimum operating temperature 0 C to + 70 C Operating Temperature Range Product belongs to the SN74S00 series. The Unit Weight is 0.004564 oz.

SN74S00D Image

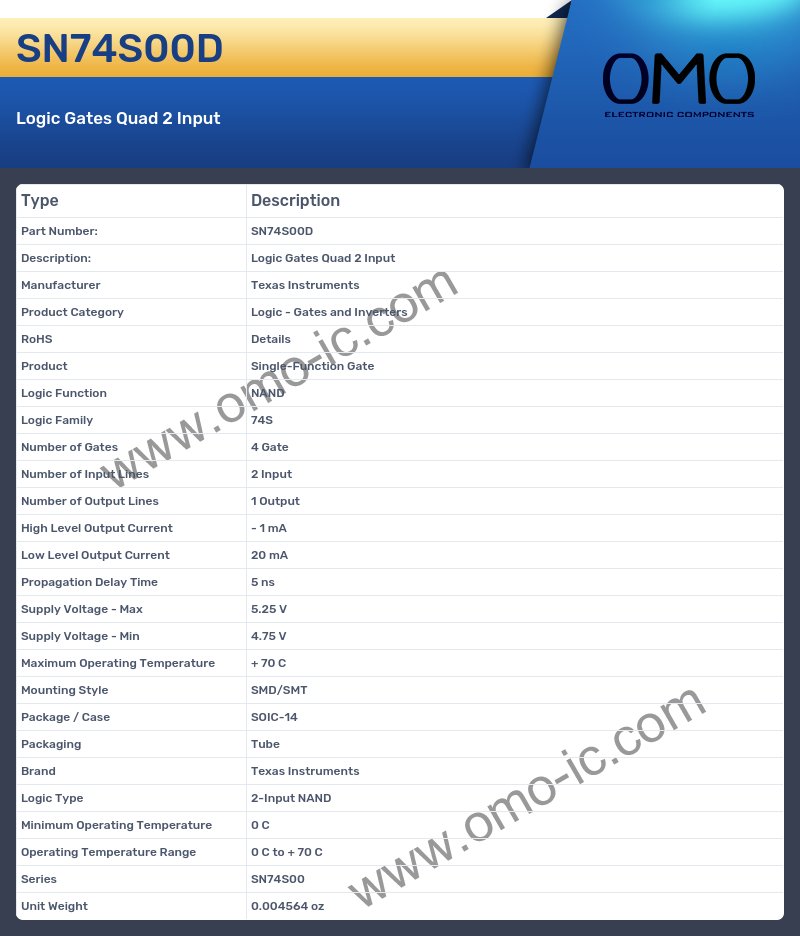

SN74S00D Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• RoHS Details
• Product Single-Function Gate
• Logic Function NAND
• Logic Family 74S
• Number of Gates 4 Gate
• Number of Input Lines 2 Input
• Number of Output Lines 1 Output
• High Level Output Current - 1 mA
• Low Level Output Current 20 mA
• Propagation Delay Time 5 ns
• Supply Voltage - Max 5.25 V
• Supply Voltage - Min 4.75 V
• Maximum Operating Temperature + 70 C
• Mounting Style SMD/SMT
• Package / Case SOIC-14
• Packaging Tube
• Brand Texas Instruments
• Logic Type 2-Input NAND
• Minimum Operating Temperature 0 C
• Operating Temperature Range 0 C to + 70 C
• Series SN74S00
• Unit Weight 0.004564 oz
