ST7FLITE20F2B6

ST7FLITE20F2B6 Overview

Product belongs to the ST7 series. Tube is the packaging method for this product Weight of 0.079719 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: -40°C ~ 85°C (TA) Supplier device package: * This product has 15 I/O ports for versatile connectivity. Operating frequency: 8MHz Program memory type: FLASH SPI interface Supply Voltage: 2.4 V ~ 5.5 V 8-Bit architecture Internal oscillator type Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 2.4 V to 5.5 V supply voltage for reliable performance. SPI interface type Processor Core: ST7 This product is powered by the ST7FLITE2x Processor-Series, providing high performance and efficiency. The 8 bit. Maximum supply voltage of 5.5 V Minimum supply voltage is 3.3 V Maximum clock frequency of 8 MHz Number of ADC Channels: 7 7 This product has 15 I/O connections. This product has a 384 B data RAM size, providing ample storage for complex applications. This product features 4 Timer number of timers and counters. This product features a high-precision 10 bit 13 bit, ensuring accurate data conversion. The EEPROM Data-ROM-Type ensures non-volatile memory storage.

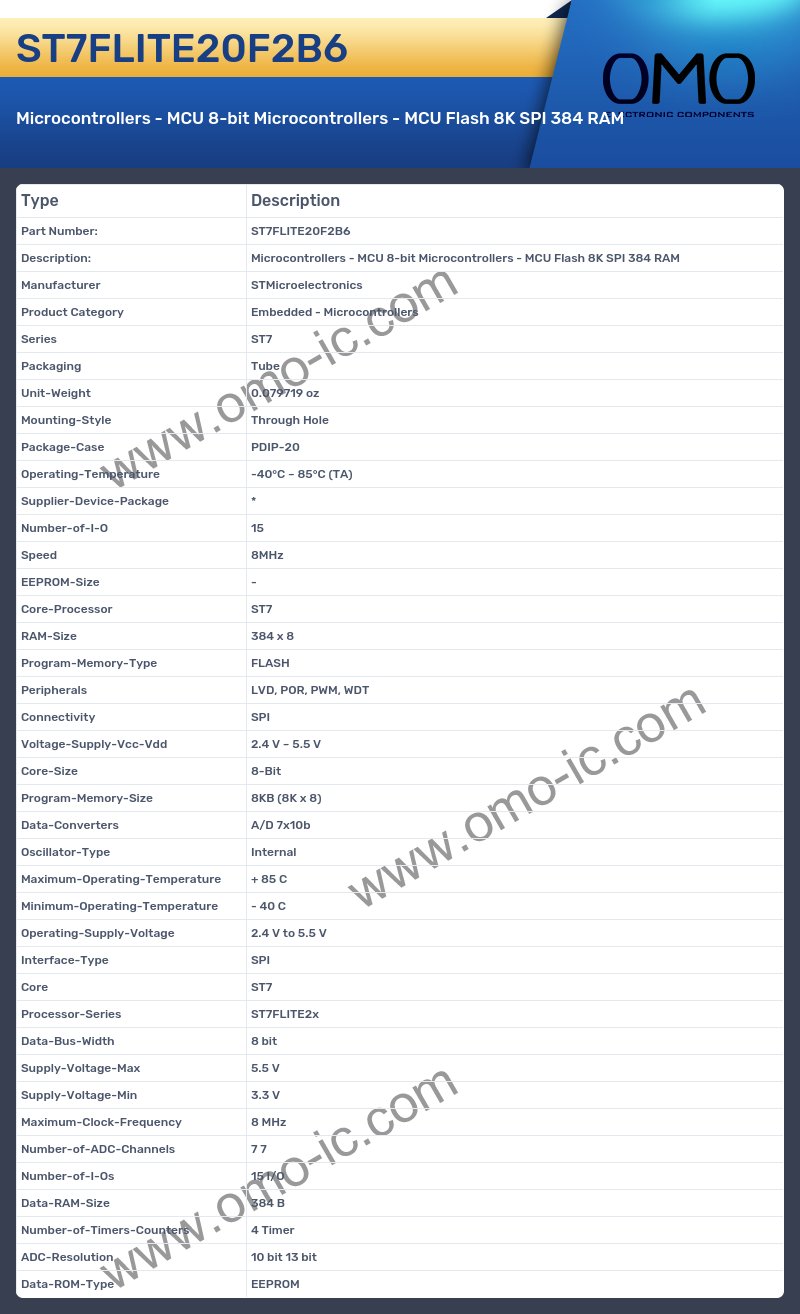

ST7FLITE20F2B6 Image

ST7FLITE20F2B6 Specifications

• Manufacturer STMicroelectronics
• Product Category Embedded - Microcontrollers
• Series ST7
• Packaging Tube
• Unit-Weight 0.079719 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 85°C (TA)
• Supplier-Device-Package *
• Number-of-I-O 15
• Speed 8MHz
• EEPROM-Size -
• Core-Processor ST7
• RAM-Size 384 x 8
• Program-Memory-Type FLASH
• Peripherals LVD, POR, PWM, WDT
• Connectivity SPI
• Voltage-Supply-Vcc-Vdd 2.4 V ~ 5.5 V
• Core-Size 8-Bit
• Program-Memory-Size 8KB (8K x 8)
• Data-Converters A/D 7x10b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 2.4 V to 5.5 V
• Interface-Type SPI
• Core ST7
• Processor-Series ST7FLITE2x
• Data-Bus-Width 8 bit
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.3 V
• Maximum-Clock-Frequency 8 MHz
• Number-of-ADC-Channels 7 7
• Number-of-I-Os 15 I/O
• Data-RAM-Size 384 B
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution 10 bit 13 bit
• Data-ROM-Type EEPROM
