| Mfr. #: | STD16NF06LT4 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | MOSFET N-CH 60V 24A DPAK |
| 生命周期: | 制造商新产品。 |
| 数据表: | STD16NF06LT4 数据表 |
Product belongs to the STripFET II series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. Operational temperature range: -55°C ~ 175°C (TJ) Surface Mount mounting type Number of channels: 1 Channel Supplier device package: D-Pak Configuration Single This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 N-Channel 60V This product has an 370pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 24A (Tc) continuous drain-ID current at 25°C; This product has an 70 mOhm @ 8A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 40 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C This product has a 6 ns of 16 ns. This product has a 30 ns of 16 ns. This product's 18 V. The ID of continuous drain current is 24 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 60 V. The 70 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 20 ns This product has a 12 ns. This product features a 12 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

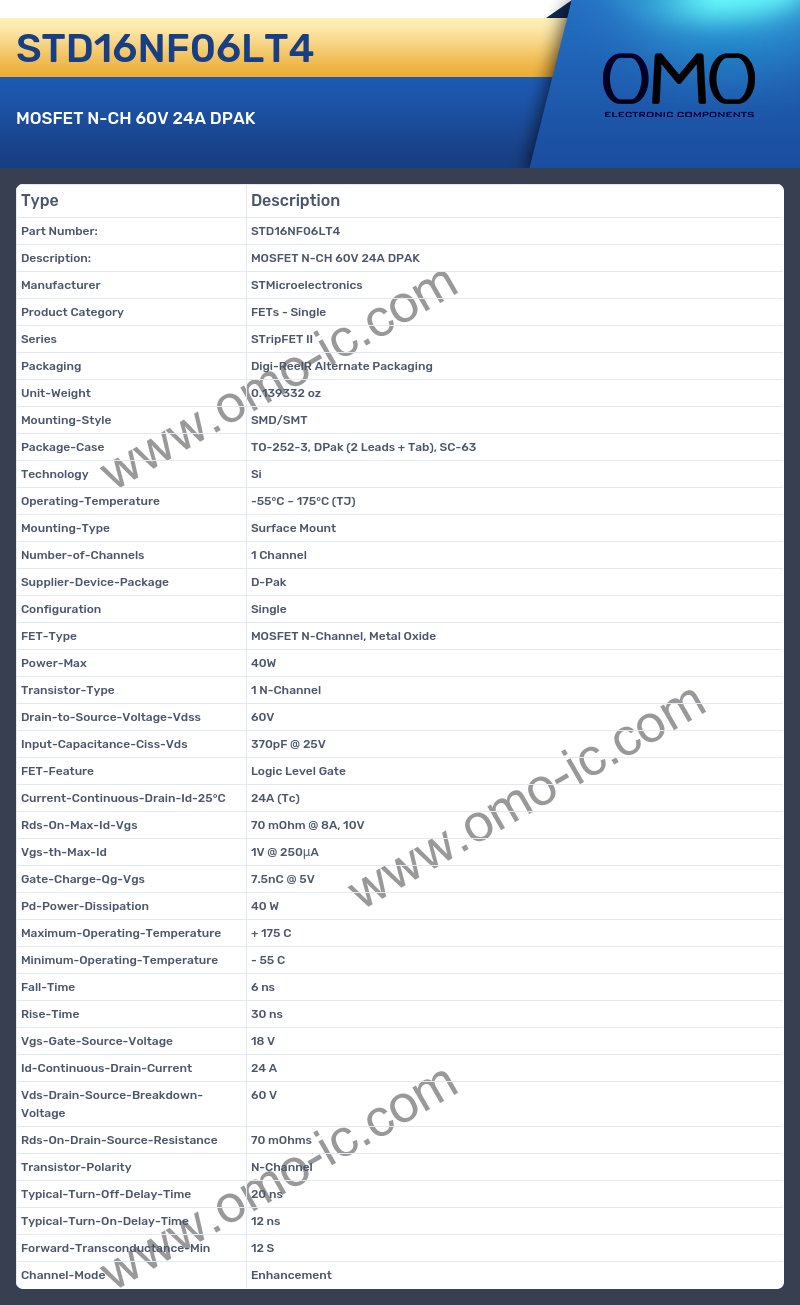

STD16NF06LT4 Specifications
A: What is the Series of the product?
Q: The Series of the product is STripFET II.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.139332 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-252-3, DPak (2 Leads + Tab), SC-63.
A: At what frequency does the Technology?
Q: The product Technology is Si.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -55°C ~ 175°C (TJ).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 1 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is D-Pak.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: At what frequency does the FET-Type?
Q: The product FET-Type is MOSFET N-Channel, Metal Oxide.
A: At what frequency does the Transistor-Type?
Q: The product Transistor-Type is 1 N-Channel.
A: What is the Drain-to-Source-Voltage-Vdss of the product?
Q: The Drain-to-Source-Voltage-Vdss of the product is 60V.
A: Is the cutoff frequency of the product Input-Capacitance-Ciss-Vds?
Q: Yes, the product's Input-Capacitance-Ciss-Vds is indeed 370pF @ 25V
A: What is the FET-Feature of the product?
Q: The FET-Feature of the product is Logic Level Gate.
A: Is the cutoff frequency of the product Current-Continuous-Drain-Id-25°C?
Q: Yes, the product's Current-Continuous-Drain-Id-25°C is indeed 24A (Tc)
A: Is the cutoff frequency of the product Rds-On-Max-Id-Vgs?
Q: Yes, the product's Rds-On-Max-Id-Vgs is indeed 70 mOhm @ 8A, 10V
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 40 W.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 175 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 6 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 30 ns.
A: What is the Vgs-Gate-Source-Voltage of the product?
Q: The Vgs-Gate-Source-Voltage of the product is 18 V.
A: At what frequency does the Id-Continuous-Drain-Current?
Q: The product Id-Continuous-Drain-Current is 24 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is 60 V.
A: Is the cutoff frequency of the product Rds-On-Drain-Source-Resistance?
Q: Yes, the product's Rds-On-Drain-Source-Resistance is indeed 70 mOhms
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is N-Channel.
A: Is the cutoff frequency of the product Typical-Turn-Off-Delay-Time?
Q: Yes, the product's Typical-Turn-Off-Delay-Time is indeed 20 ns
A: Is the cutoff frequency of the product Typical-Turn-On-Delay-Time?
Q: Yes, the product's Typical-Turn-On-Delay-Time is indeed 12 ns
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 12 S.
A: What is the Channel-Mode of the product?
Q: The Channel-Mode of the product is Enhancement.
