STG3682QTR

STG3682QTR Overview

Product belongs to the STG3682 series. Reel is the packaging method for this product Weight of 0.000247 oz SMD/SMT Mounting-Style Configuration 2 x SPDT Power-off control: 1.12 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.65 V to 4.3 V supply voltage for reliable performance. Maximum supply current: 100 nA Maximum supply voltage of 4.3 V Minimum supply voltage is 1.65 V QFN-10 Single Supply supply type Max on-resistance of 6.5 Ohms Maximum off time: 13 ns 2 Switch switch functionality Maximum on-time: 15 ns The maximum switch voltage for this product is 3 V

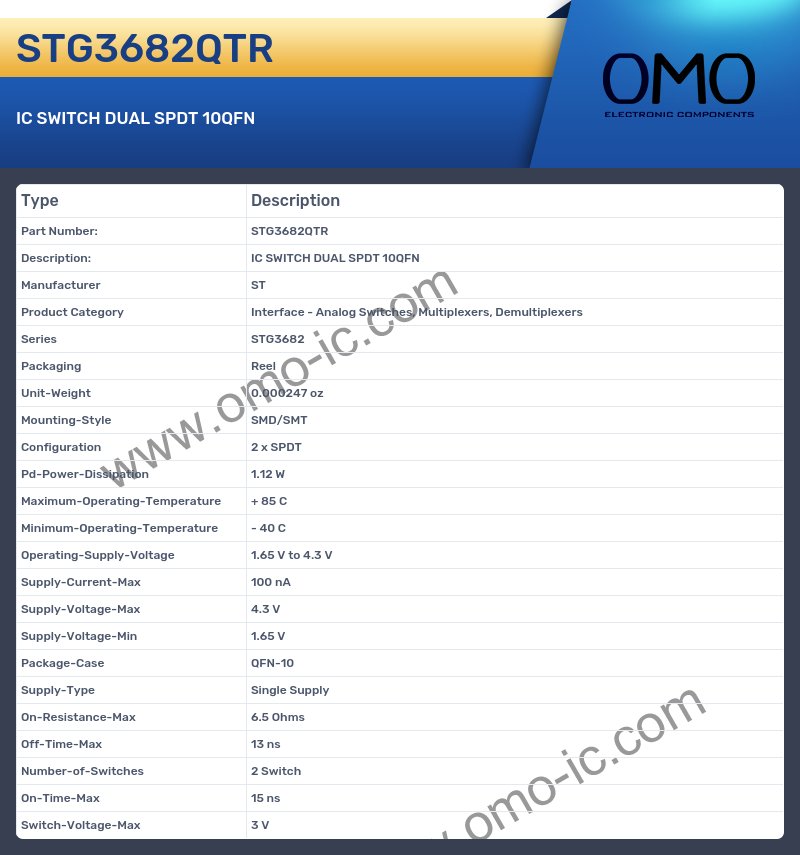

STG3682QTR Image

STG3682QTR Specifications

• Manufacturer ST
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series STG3682
• Packaging Reel
• Unit-Weight 0.000247 oz
• Mounting-Style SMD/SMT
• Configuration 2 x SPDT
• Pd-Power-Dissipation 1.12 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.65 V to 4.3 V
• Supply-Current-Max 100 nA
• Supply-Voltage-Max 4.3 V
• Supply-Voltage-Min 1.65 V
• Package-Case QFN-10
• Supply-Type Single Supply
• On-Resistance-Max 6.5 Ohms
• Off-Time-Max 13 ns
• Number-of-Switches 2 Switch
• On-Time-Max 15 ns
• Switch-Voltage-Max 3 V
