STG4158BJR

STG4158BJR Overview

Product belongs to the STG4158 series. Reel is the packaging method for this product SMD/SMT Mounting-Style Configuration 1 x SPDT Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 1.65 V to 4.5 V supply voltage for reliable performance. Maximum supply voltage of 4.5 V Minimum supply voltage is 1.65 V Flip Chip-6 Single Supply supply type Max on-resistance of 600 mOhms Maximum off time: 13 ns 1 Switch switch functionality Maximum on-time: 28 ns The maximum switch voltage for this product is 4.5 V

STG4158BJR Image

STG4158BJR Specifications

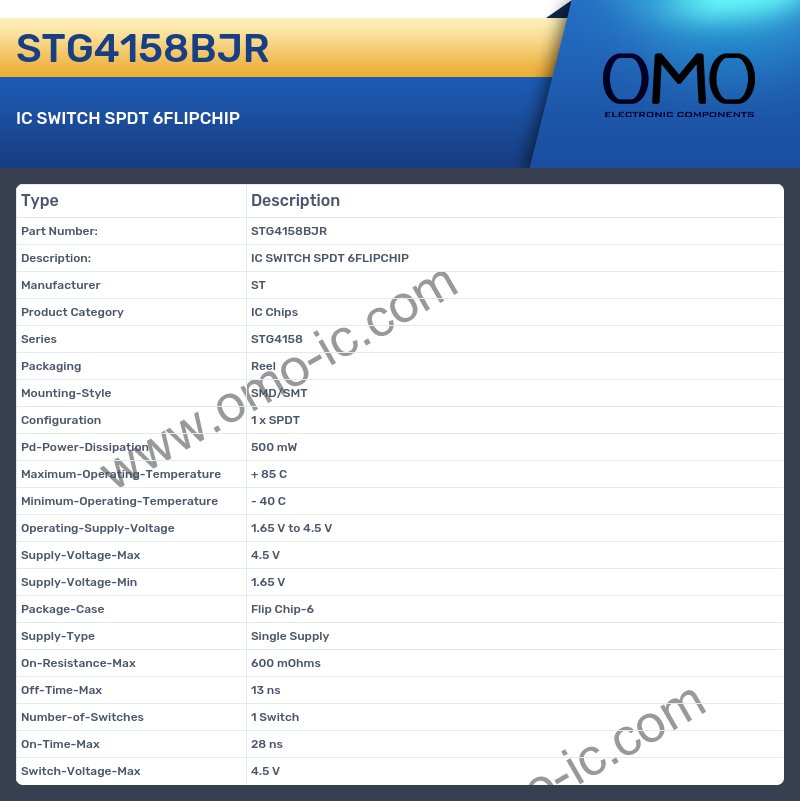

• Manufacturer ST
• Product Category IC Chips
• Series STG4158
• Packaging Reel
• Mounting-Style SMD/SMT
• Configuration 1 x SPDT
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 1.65 V to 4.5 V
• Supply-Voltage-Max 4.5 V
• Supply-Voltage-Min 1.65 V
• Package-Case Flip Chip-6
• Supply-Type Single Supply
• On-Resistance-Max 600 mOhms
• Off-Time-Max 13 ns
• Number-of-Switches 1 Switch
• On-Time-Max 28 ns
• Switch-Voltage-Max 4.5 V
