STGAP1S

STGAP1S Overview

Product belongs to the Automotive, AEC-Q100, gapDRIVE series. This product is categorized as MOSFET Gate Drivers Type: Isolated Driver Tube is the packaging method for this product Weight of 0.010857 oz SMD/SMT Mounting-Style SO-24 Capacitive Coupling is the technology used. Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Number of channels: 1 Voltage Supply Range: 4.5 V ~ 36 V Supplier device package: 24-SO Configuration Inverting The product's - is 4A. This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product has received UL approvals for safety and reliability. Power-off control: Yes Minimum - of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 130ns, 130ns The minimum pulse width distortion is 10ns. Power-off control: 65 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product has a 25 ns of 16 ns. This product has a 25 ns of 16 ns. Maximum supply voltage of 36 V Minimum supply voltage is 4.5 V Number-of-Drivers: 1 Driver

STGAP1S Image

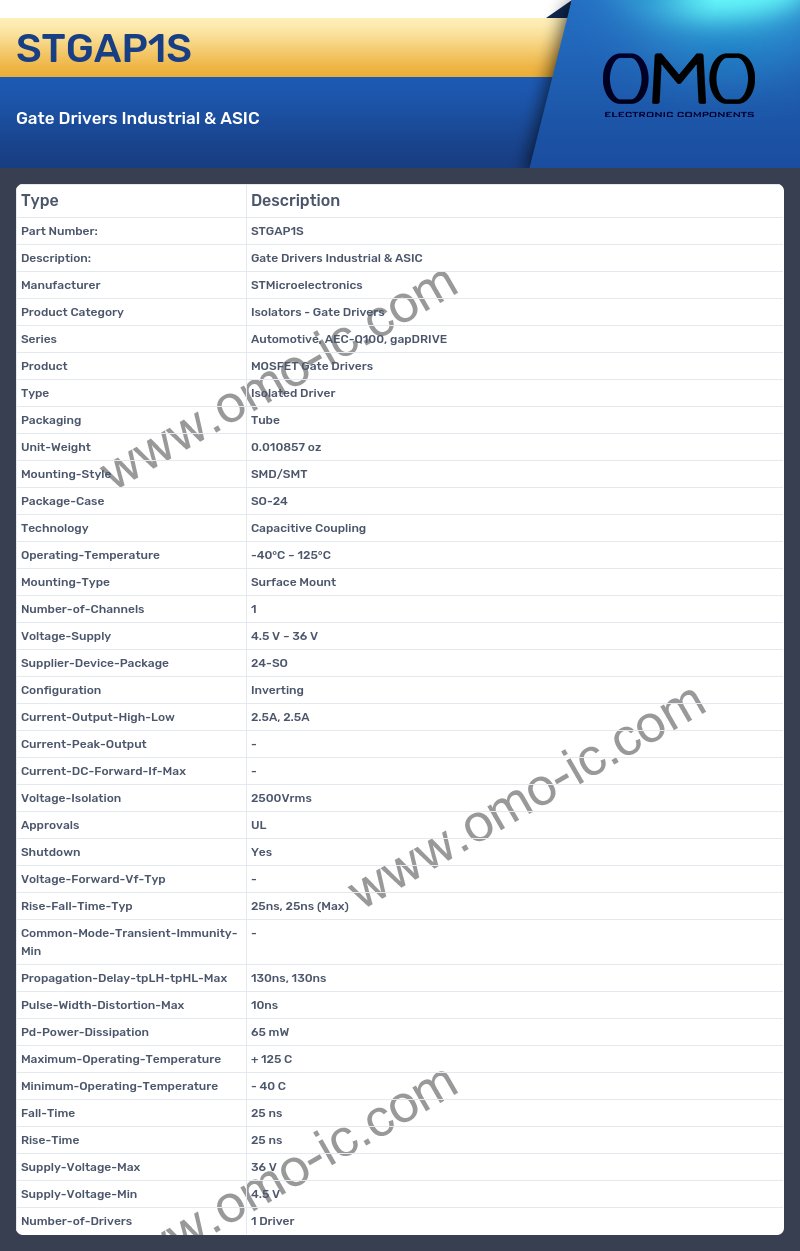

STGAP1S Specifications

• Manufacturer STMicroelectronics
• Product Category Isolators - Gate Drivers
• Series Automotive, AEC-Q100, gapDRIVE
• Product MOSFET Gate Drivers
• Type Isolated Driver
• Packaging Tube
• Unit-Weight 0.010857 oz
• Mounting-Style SMD/SMT
• Package-Case SO-24
• Technology Capacitive Coupling
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Number-of-Channels 1
• Voltage-Supply 4.5 V ~ 36 V
• Supplier-Device-Package 24-SO
• Configuration Inverting
• Current-Output-High-Low 2.5A, 2.5A
• Current-Peak-Output -
• Current-DC-Forward-If-Max -
• Voltage-Isolation 2500Vrms
• Approvals UL
• Shutdown Yes
• Voltage-Forward-Vf-Typ -
• Rise-Fall-Time-Typ 25ns, 25ns (Max)
• Common-Mode-Transient-Immunity-Min -
• Propagation-Delay-tpLH-tpHL-Max 130ns, 130ns
• Pulse-Width-Distortion-Max 10ns
• Pd-Power-Dissipation 65 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Fall-Time 25 ns
• Rise-Time 25 ns
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 4.5 V
• Number-of-Drivers 1 Driver
