| Mfr. #: | STGD14NC60KT4 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT Transistors N-channel MOSFET |
| 生命周期: | 制造商新产品。 |
| 数据表: | STGD14NC60KT4 数据表 |

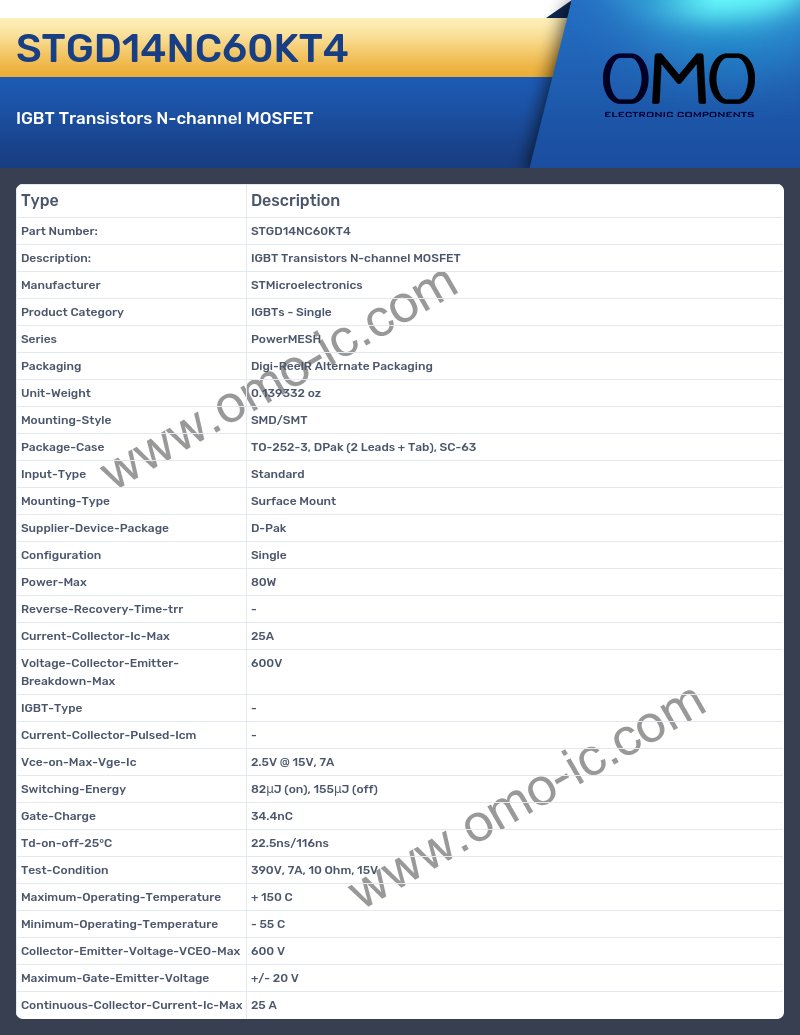

Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Maximum current collector Ic is 25A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at -. The Vce-on-Max-Vge-Ic is rated at 2.5V @ 15V, 7A. 22.5ns/116ns Td-on-off at 25°C; Operating temperature: 390V, 7A, 10 Ohm, 15V Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 25 A Collector Current of Continuity;
