| Mfr. #: | STGD7NB60ST4 |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT 600V 15A 55W DPAK |
| 生命周期: | 制造商新产品。 |
| 数据表: | STGD7NB60ST4 数据表 |
Product belongs to the PowerMESH series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 The Standard for this product is CMOS/TTL. Surface Mount mounting type Supplier device package: D-Pak Configuration Single Maximum current collector Ic is 15A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 60A. The Vce-on-Max-Vge-Ic is rated at 1.6V @ 15V, 7A. 700ns/- Td-on-off at 25°C; Operating temperature: 480V, 7A, 1 kOhm, 15V Power-off control: 55 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.6 V 15 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 15 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

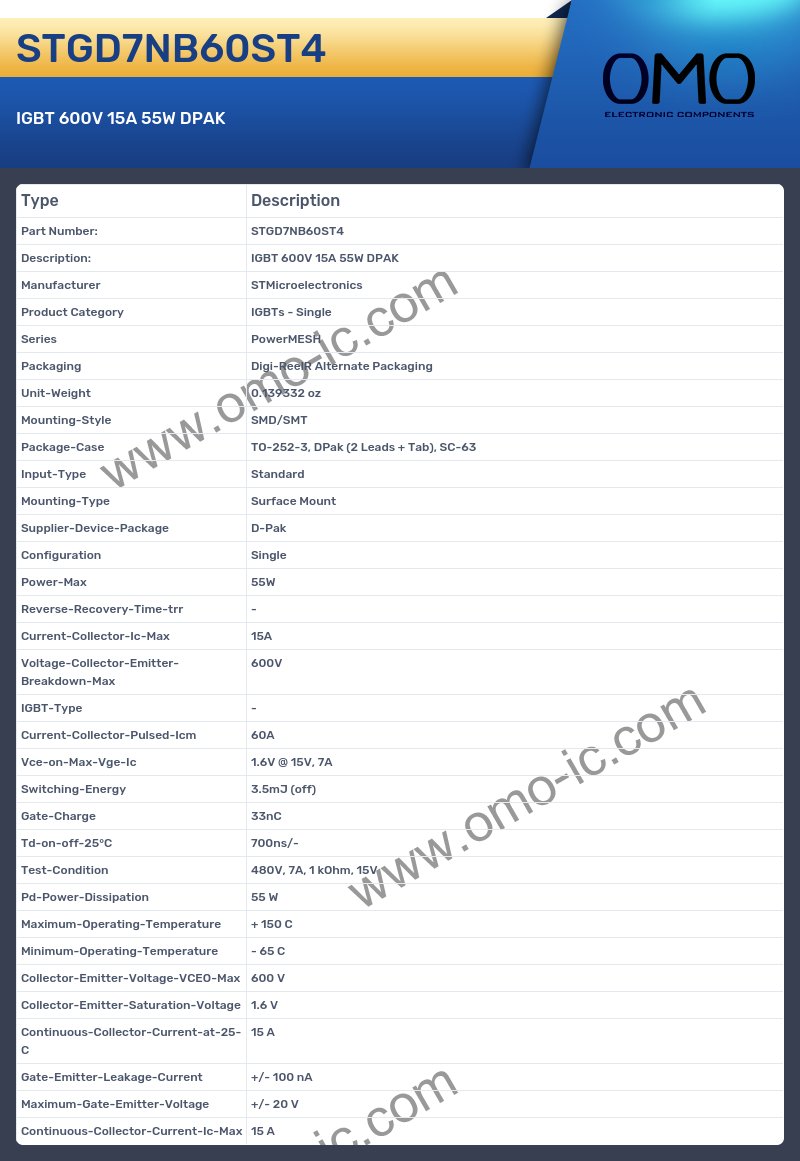

STGD7NB60ST4 Specifications
