| Mfr. #: | STGF10H60DF |
|---|---|
| 制造商: | STMicroelectronics |
| 描述: | IGBT Transistors Trench gate H series 600V 10A HiSpd |
| 生命周期: | 制造商新产品。 |
| 数据表: | STGF10H60DF 数据表 |
Product belongs to the 600-650V IGBTs series. Tube is the packaging method for this product Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Full Pack The Standard for this product is CMOS/TTL. Through Hole mounting type Supplier device package: TO-220FP Configuration Single Maximum current collector Ic is 20A . Maximum collector-emitter breakdown voltage of 600V The Current-Collector-Pulsed-Icm is rated at 40A. The Vce-on-Max-Vge-Ic is rated at 1.95V @ 15V, 10A. 19.5ns/103ns Td-on-off at 25°C; Operating temperature: 400V, 10A, 10 Ohm, 15V Power-off control: 30 W Maximum operating temperature of + 175 C Minimum operating temperature: - 55 C Rated VCEO up to 600 V Saturation voltage between collector and emitter is 1.5 V 20 A Continuous Collector Current at 25°C Maximum-Gate-Emitter-Voltage: +/- 20 V Maximal 10 A Collector Current of Continuity;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

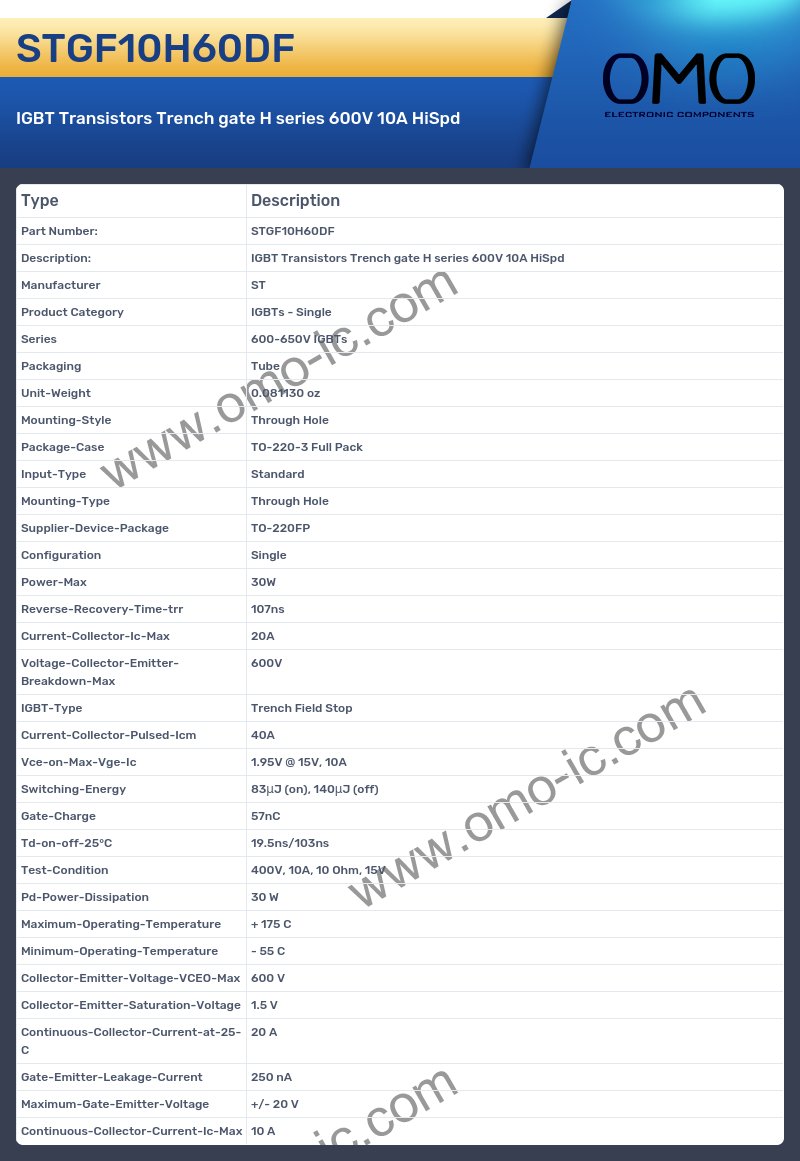

STGF10H60DF Specifications
A: What is the Series of the product?
Q: The Series of the product is 600-650V IGBTs.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Tube
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.081130 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-220-3 Full Pack
A: At what frequency does the Input-Type?
Q: The product Input-Type is Standard.
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is TO-220FP.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: Is the cutoff frequency of the product Current-Collector-Ic-Max?
Q: Yes, the product's Current-Collector-Ic-Max is indeed 20A
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 600V.
A: What is the Current-Collector-Pulsed-Icm of the product?
Q: The Current-Collector-Pulsed-Icm of the product is 40A.
A: What is the Vce-on-Max-Vge-Ic of the product?
Q: The Vce-on-Max-Vge-Ic of the product is 1.95V @ 15V, 10A.
A: What is the Td-on-off-25°C of the product?
Q: The Td-on-off-25°C of the product is 19.5ns/103ns.
A: At what frequency does the Test-Condition?
Q: The product Test-Condition is 400V, 10A, 10 Ohm, 15V.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 30 W
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 175 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 600 V.
A: At what frequency does the Collector-Emitter-Saturation-Voltage?
Q: The product Collector-Emitter-Saturation-Voltage is 1.5 V.
A: Is the cutoff frequency of the product Continuous-Collector-Current-at-25-C?
Q: Yes, the product's Continuous-Collector-Current-at-25-C is indeed 20 A
A: Is the cutoff frequency of the product Maximum-Gate-Emitter-Voltage?
Q: Yes, the product's Maximum-Gate-Emitter-Voltage is indeed +/- 20 V
A: Is the cutoff frequency of the product Continuous-Collector-Current-Ic-Max?
Q: Yes, the product's Continuous-Collector-Current-Ic-Max is indeed 10 A
